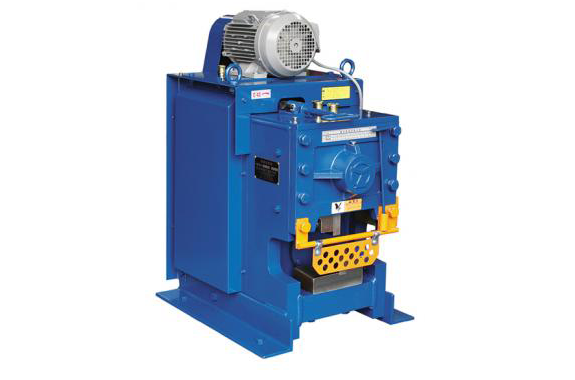

Toyo Rebar Cutter
Features
- Long life rebar cutter thanks to its strength and durability
- Wide-range application: individual and industrial uses
- Compact rebar cutter with specially designed gear assy
- Simple operation with only one clutch lever
Specifications
Rebar Cutter C-33
- Cutting capacity: Steel bar sizes from D10 to D32 (Material SD 345 with tensile strength 490 N/mm2)
- Motor power: 1.5 kW
- Required breaker capacity: 30A
- Rotating speed: 40/48 revs/min (50/60 Hz)
- Dimensions (LxWxH): 555x615x930 mm
- Weight: 460 kg
Rebar Cutter C-43
- Cutting capacity: Steel bar sizes from D10 to D41 (Material SD 345 with tensile strength 490 N/mm2)
- Motor power: 2.2 kW
- Required breaker capacity: 30A
- Rotating speed: 38/46 revs/min (50/60 Hz)
- Dimensions (LxWxH): 580x710x1.045 mm
- Weight: 600 kg
| Model | C-33 | C-43 |
|---|---|---|
| Rated Voltage | 220V/ 3PH /60 Hz | 220V/ 3PH /60 Hz |
| Required Power | 30A | 30A |
| Motor Capacity | 1.5kW | 2.2kW |
| Cutting Revolution | 60 Hz 48 rpm | 60 Hz 46 rpm |
| Clearance Between Blades | 37mm | 46mm |
| Height of Cutting Surface | 330.5mm | 367mm |
| Ambiet Temperature | 0-40°C | 0-40°C |
| Ambiet Humidity | 30-85%RH | 30-85%RH |
| Dimension | 555 x 615 x 930 mm | 580 x 710 x 1045mm |
