Toku Impact Wrench (1" to 1-1/2" Square Drive / Straight)
Feature

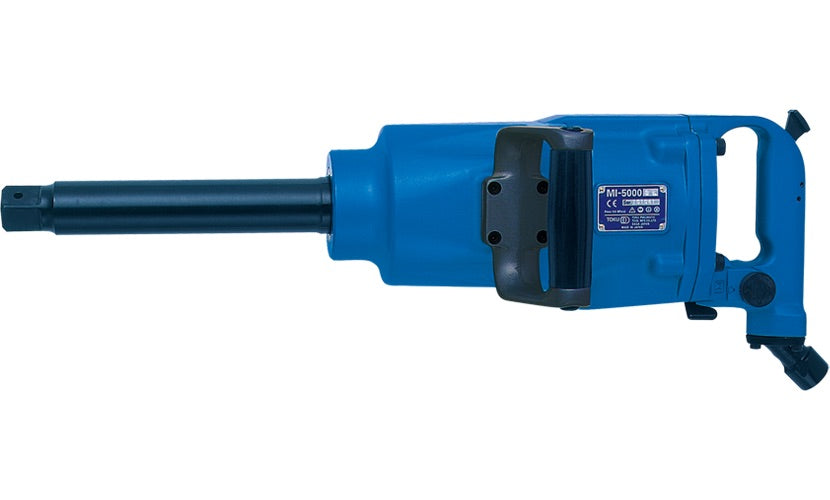

MI-5000GS / MI-5000GL
- Short anvil shank type MI-5000GS available.
- Ideal for change of truck tires and heavy equipments.
- Inside trigger type MI-5000EL(ES) available.

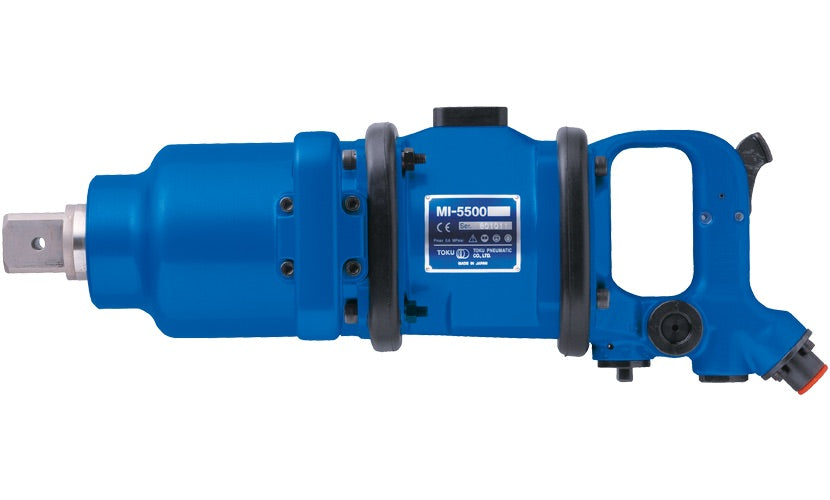

MI-5500S
- Pin clutch mechanism.
- Powerful for extra heavy duty work.
- Inside trigger type MI-5500ES available.
Specification
| MODEL | Drive | Bolt Size |
Torque Range |
Max Torque |
Net Weight |
Overall Length |
Center Height |
Free Speed |
Air Consumption |
Air Inlet |
Hose Size |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | kgm | kgm | kg | mm | mm | rpm | Free m3/min |
Load m3/min |
PT | inch | |
| MI-5000GS | 1 | 50 | 50 - 220 | 270 | 14.3 | 460 | 60 | 3700 | 1.9 | 1.0 | 1/2 | 1/2 |
| MI-5000GL | 1 | 50 | 50 - 220 | 270 | 16.0 | 594 | 60 | 3700 | 1.9 | 1.0 | 1/2 | 1/2 |
| MI-5500S | 1-1/2 | 55 | 150 - 428 | 560 | 18.1 | 520 | 60 | 2800 | 1.25 | 0.9 | 1/2 | 1/2 |
