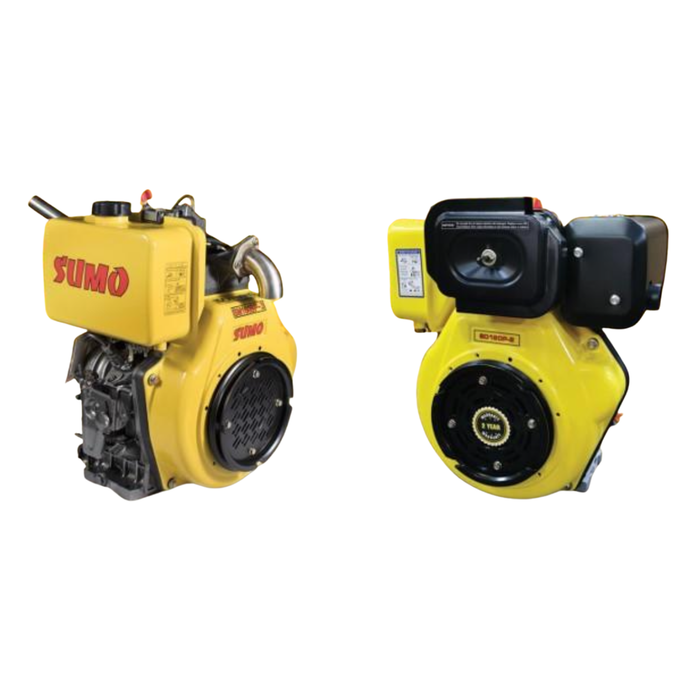

Sumo Diesel Engine
- Air- Cooled
Specification
| Model | Max HP | Displacement | Starting System | Max Rpm |
|---|---|---|---|---|
| SD70B-2 (w/ reduction gear) | 6.7 | 296cc | Recoil Starter | 1800 |
| SD100P-2 | 10 | 406cc | Manual Pulley | 3600 |
| SD100BP-2 (w/ reduction gear) | 10 | 406cc | Manual Pulley | 1800 |
| SD120P-2 | 12 | 418cc | Manual Pulley | 3600 |
| SD120BP-2 (w/ reduction gear) | 12 | 418cc | Manual Pulley | 1800 |
| SM120BP-2 (marine w/ reduction gear) | 12 | 418cc | Manual Pulley | 1800 |
| SM140P-3 (marine) | 14 | 477cc | Manual Pulley | 3600 |
| SD160P-3 | 16 | 498cc | Manual Pulley | 3600 |
| Model | SD70-2 Standard | SD70B-2 w/ Reduction gear | SD100BP-2 w/ Reduction gear | SD-100P-2 Standard | SD100-TP w/ Lighting coil |
SD120P-2 Standard |
SD140P-3 Standard |
|---|---|---|---|---|---|---|---|
| Type | Single-cylinder Vertical 4-Stroke air-cooled diesel direct injection | ||||||
| Combustion System (cc) | 296 | 296 | 406 | 406 | 406 | 418 | 477 |
| Bore × Stroke (mm) | 78 × 62 | 78 × 62 | 86 × 70 | 86 × 70 | 84 × 70 | 88 × 72 | 90 × 72 |
| Engine Speed (rpm) | 3,000–3,600 | 1,500–1,800 | 1,500–1,800 | 3,000–3,600 | 3,000–3,600 | 3,000–3,600 | 3,000–3,600 |
| Maximum Output (hp) | 6.1–6.7 | 6.1–6.7 | 8.8–10.0 | 8.8–10.0 | 8.8–10.0 | 9.0–12.0 | 11.0–14.0 |
| Continuous Output (hp) | 5.5–6.0 | 5.5–6.0 | 7.7–9.0 | 7.7–9.0 | 7.7–9.0 | 8.7–10.0 | 10.0–12.0 |
| Maximum Torque (N·m/rpm) | 15/2,000 | 30/1,000 | 54/1,000 | 27/2,000 | 27/2,000 | 23/2,300 | 24/2,300 |
| Fuel Consumption (L/hr) | 1.5 | 1.5 | 2.1 | 2.1 | 2.1 | 2.18 | 2.49 |
| PTO Shaft | Crankshaft or Camshaft (Camshaft PTO rpm is 1/2) | ||||||
| Starting System | Recoil | Recoil | Manual Pulley | Manual Pulley | Manual Pulley | Manual Pulley | Manual Pulley |
| Fuel Tank Capacity (L) | 3.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Lube Oil Capacity (L) | 1.1 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
| Dry Weight (kg) | 33 | 35 | 50 | 48.4 | 49.4 | 47 | 46 |
| Dimensions (L×W×H mm) |
383×421×450 | 383×421×450 | 417×470×494 | 417×470×494 | 417×470×494 | 417×470×494 | 417×470×494 |
| Model | SM100BP-2 Marine w/ Reduction gear | SM100P-2 Marine | SD120BP-2 w/ Reduction gear | SM120BP-2 Marine w/ Reduction gear | SM120P-2 Marine | SM140P-3 Marine | SM160P-3 Marine w/ Reduction gear | SM160BP-3 Marine w/ Reduction gear |
|---|---|---|---|---|---|---|---|---|
| Type | Single-cylinder Vertical 4-Stroke air-cooled diesel direct injection | |||||||
| Combustion System (cc) | 406 | 406 | 418 | 418 | 418 | 477 | 498 | 498 |
| Bore × Stroke (mm) | 86 × 70 | 86 × 70 | 88 × 72 | 88 × 72 | 88 × 72 | 90 × 72 | 92 × 75 | 92 × 75 |
| Engine Speed (rpm) | 1,500–1,800 | 3,000–3,600 | 1,500–1,800 | 1,500–1,800 | 3,000–3,600 | 3,000–3,600 | 3,000–3,600 | 1,500–1,800 |
| Maximum Output (hp) | 8.8–10.0 | 8.8–10.0 | 9.0–12.0 | 9.0–12.0 | 9.0–12.0 | 11.0–14.0 | 12.0–15.0 | 12.0–15.0 |
| Continuous Output (hp) | 7.7–9.0 | 7.7–9.0 | 8.7–10.0 | 8.0–10.0 | 8.7–10.0 | 10.0–12.0 | 11.0–13.0 | 11.0–13.0 |
| Maximum Torque (N·m/rpm) | 54/1,000 | 27/2,000 | 46/1,150 | 46/1,150 | 23/2,300 | 24/2,300 | 25/2,300 | 50/1,150 |
| Fuel Consumption (L/hr) | 2.1 | 2.1 | 2.18 | 2.18 | 2.18 | 2.49 | 2.69 | 2.69 |
| PTO Shaft | Crankshaft or Camshaft (Camshaft PTO rpm is 1/2) | |||||||
| Starting System | Manual Pulley (all models) | |||||||
| Fuel Tank Capacity (L) | 5.5 (all models) | |||||||
| Lube Oil Capacity (L) | 1.65 (all models) | |||||||
| Dry Weight (kg) | 49 | 47.4 | 47.5 | 47.5 | 42.5 | 43 | 45 | 46 |
| Dimensions (L×W×H mm) | 417×470×494 (all models) | |||||||
