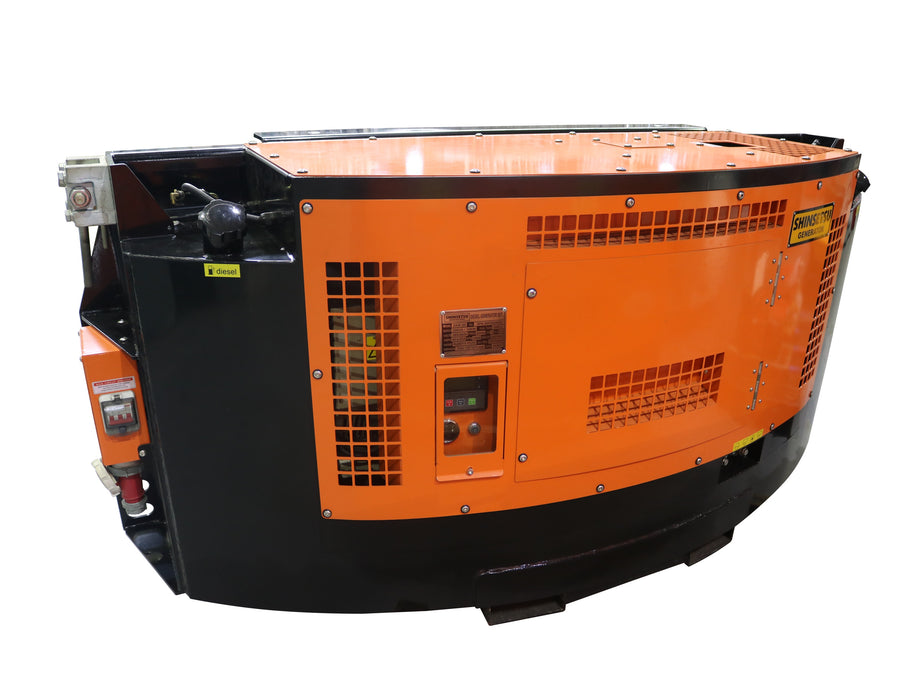

Shinsetsu Reefer Container Generator SKR-20
Feature
- LONG TIME FUEL SUPPLY: With super large size fuel tank, can offer at least 80hours operation. It mends your fresh foods and drinks etc. Will enjoy over 6000km transportation journey without stop.
- SMART DIGITAL TEMPERATURE CONTROL SYSTEM:There is a temperature monitor for inner part of container generator will start or stop automatically when temperature reaches setting value. Most economic runing way, maximize your interests.
- SAFE & CONVENIENT: Mounting clip on type and header pin for underslung time both made of high strength steel. Configure one step attch, connecting and disconnecting in minutes. Waterproof design control system and IP65 power ouput socket, operation under anywhere condition.
- INTELLIGENT CONTROL SYSTEM: After one button start, leave everything to it.
Specification
| Rated Power (kw) | 16 kw / 20 kva |
|---|---|
| Frequency (HZ) | 60 HZ |
| Voltage V | 460 v |
| Noice Level For Silent Type (Db) | 74 / 1M |
| Amps (A) | 23.5 |
| ENGINE |
|
| Model | v 2203 |
| 12 Hours Rated Power (kw) | 21.3 |
| Cylinders | 4 |
| Bore X Stroke (mm) | 85 x 90 |
| Intake Method | Nature Intake |
| Displacement (L) | 2.2 |
| Fuel Comsumption (L/h) | 3.5 |
| Cooling Starting Method | Electric Start |
| Engine Manufacturer | Kubota |
| ALTERNATOR | DG184ES |
| Rated Power (kw/kva) | 20 kw / 25 kva |
| Rated Currency (A) | 31.5 |
| Power Factor (cos �) | 0.8 lagging |
| Phase/Rotary Speed |
|
| Excitation | Brushless,Self-Excited System |
| Voltage Regulation | Automatic |
| Net Weight (kg) | 1,100kg |
| Packing Size L X W X H (mm) | 2,368 x 729 x 1,073 |
| Fuel Tank Capacity (L) | 390 |
