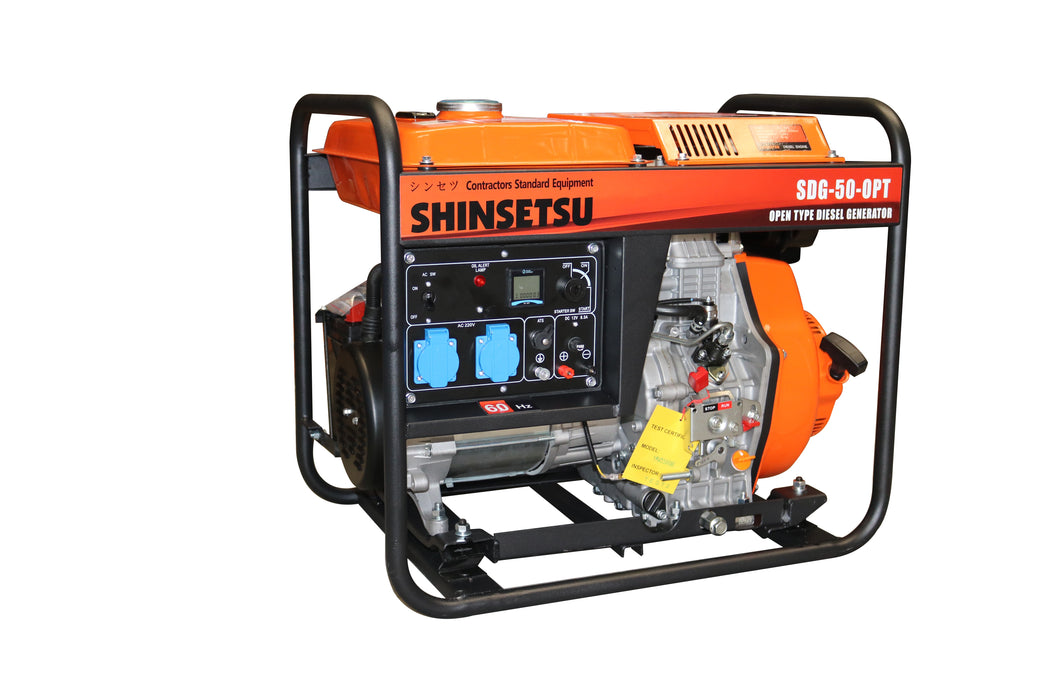

Shinsetsu Open Type Diesel Generator
Specification
| Model | SDG-50-OPT |
|---|---|
| Rated Output | 5 kW |
| Max Output | 5.5kW |
| Frequency | 60 Hz |
| Rated Voltage | 230 v |
| Rated Electric Current | 26 A |
| DC Output V | 12 (8.3) A |
| Displacement | 418 cc |
| Bore X Stroke | 86 x 72 mm |
| Compression Ratio | 19:5:1 |
| Fuel Capacity | 14.5 L |
| Lubrication Capacity | 1.65 L |
| Max Power | 9 HP / 3,600 rpm |
| Rated Power | 8.6 HP / 3,600 rpm |
| Dimension | 56.5 x 95 x 71 cm |
| Weight | 149 Kg |
| Noise | 80db from 7m distance |
