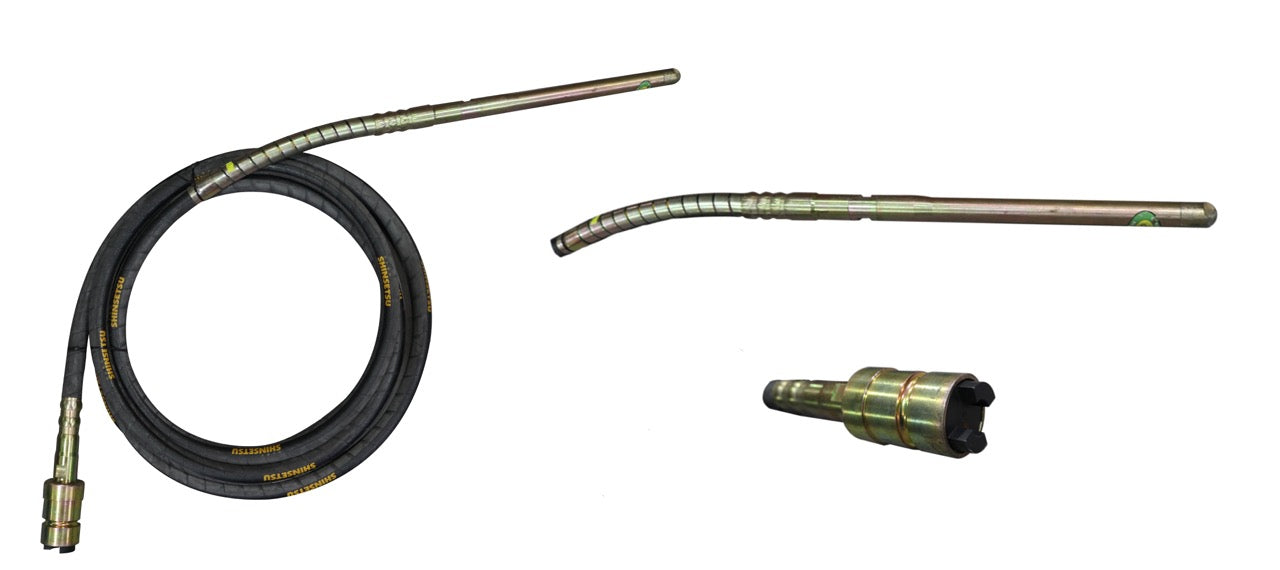

Shinsetsu Dynapac Type Coupling Vibrator Poker
Specification
| Model | SVPA-28 | SVPA-32 | SVPA-38 | SVPA-45 | SVPA-60 | SVPA-70 |
|---|---|---|---|---|---|---|
| Coupling | Dynapac | Dynapac | Dynapac | Dynapac | Dynapac | Dynapac |
| Type | Spring | Spring | Spring | Spring | Spring | Spring |
| Size | 28mm | 32mm | 38mm | 45mm | 65mm | 70mm |
| Vibrator Length | 450mm | 450mm | 465mm | 490mm | 520mm | 520mm |
| Vibrating Frequency | 12,000 - 14,000 vpm | |||||
| Rotational Speed | 3,000 - 3,600 rpm | |||||
| Vibrating Amplitude | 1.0 mm | 1.1mm | 1.6mm | 2.3mm | 2.5mm | 2.5mm |
| Flexible Hose | 30 mm | 30 mm | 30 mm | 36 mm | 36 mm | 36 mm |
| Flexible Shaft | 10 mm | 10 mm | 10 mm | 13 mm | 13 mm | 13 mm |
| Hose Length | 6 m | 6 m | 6 m | 6 m | 6 m | 6 m |
