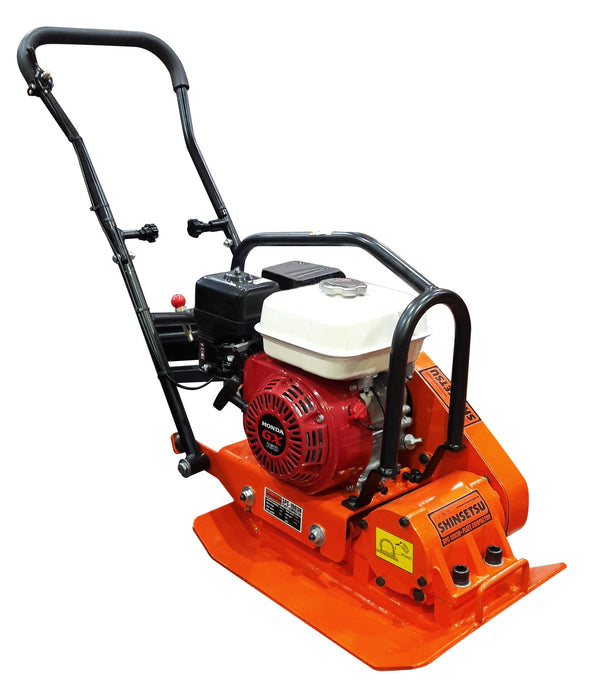

Shinsetsu 560x 370mm Plate Compactor
Features:
- The Plate Compactor is made of high-strength steel. The bottom plate, with curved edges, ensures stable operation.
- The hardened and enclosed pulley cover design protects the clutch and belt
- The strong protective framework not only prevents impact on the engine frame but also makes carrying easier.
- The foldable handle, with its unique design, saves storage spaces. The shock pad significantly reduces handle vibration, enhancing using comfort during operation.
Application
Ideal for compacting soil, gravel, and asphalt in small to medium-sized areas like driveways, patios, and foundations.
Specification
| Model | SPC-1003 | SPC-1003R | SPC-1003H |
|---|---|---|---|
| Engine Type | Shinsetsu Gasoline Engine SGE-6000 |
Robin Gasoline Engine EY20 |
Honda Gasoline Engine GX160 |
| Engine Power | 6HP | 5HP | 5.5HP |
| Plate Size (LXW) | 515x300 mm | ||
| Travel Speed | 20-25m/min | ||
| Limited Grade Ability | 20 | ||
| Vibration Frequency | 5600vpm/ 90hz | ||
| Centrifugal Force | 10 KN | ||
| Starting System | Recoil Starter | ||
| Compaction Depth | 28 cm | ||
| Packing Size | 870x420x650 mm | ||
| Net Weight | 69 Kgs | ||
