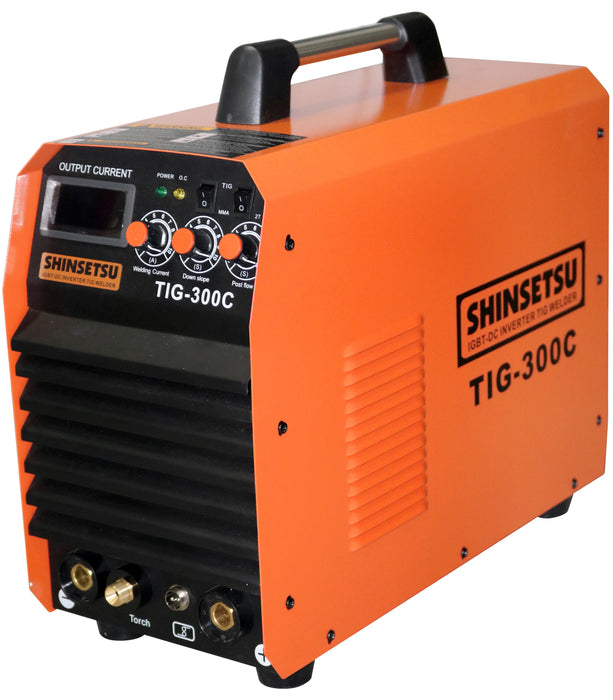

Shinsetsu 250A Inverter TIG Welding Machine TIG-300C
Specification
| nput Power | 220 - 240 v � 15% |
|---|---|
| Frequency | 50 - 60 Hz |
| Phase | 1 Ph |
| Rated Input Power (TIG & MMA) | 10.2 / 7.6 kVA |
| Rated Duty Cycle | 60% |
| Current Adjustment Range (TIG & MMA) | 15 - 275 A/ 20 - 250 A |
| Output No-Load Voltage | 61 V |
| Down Slope Time | 0 - 5S |
| Arc Force Range | 0 - 50 A |
| Efficiency | 85% |
| Post Flow Range | 0.5 - 10 S |
| Power Factor | 0.76 |
| Protection Class | IP 23 |
| Insulation Class | F |
| Ignite Mode | HF |
| Dimension | 480 x 210 x 360 mm |
| Net Weight | 22 Kg |
| Gross Weight | 23 Kg |
| Standard Accessories |
|
| Additional Accessories |
|
