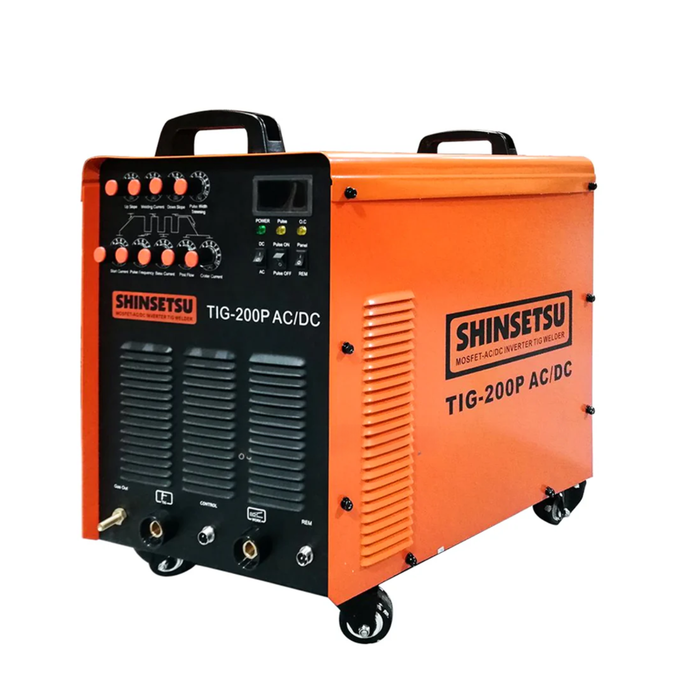

Shinsetsu 200A AC/DC Inverter TIG Welding Machine TIG-200P AC/DC
Specification
| Input Power | 220 V ~ 15% |
| Frequency | 60 Hz |
| Phase | 1 Ph |
| Rated Input Power (TIG) | 5.6 kVA /6.5 kVA |
| Rated Duty Cycle | 60% |
| Output Amperage Range (TIG) | 10 - 200 A / 20 - 160 A |
| Current Adjustment Range (TIG) | 10 - 200 A / 20 - 160 A |
| Type | PULSE TIG |
| Output No-Load Voltage | 56V |
| Initiation Mode | HF |
| Efficiency | 85 % |
| Power Factor | 0.76 |
| Protection Class | IP 23 |
| Dimension | 765 x 455 630 mm |
| Gross Weight | 34 kg |
| Net Weight | 32.5 kg |
| Welding Parameters |
|
| Standard Accessories |
|
| Additional Accessories |
|
