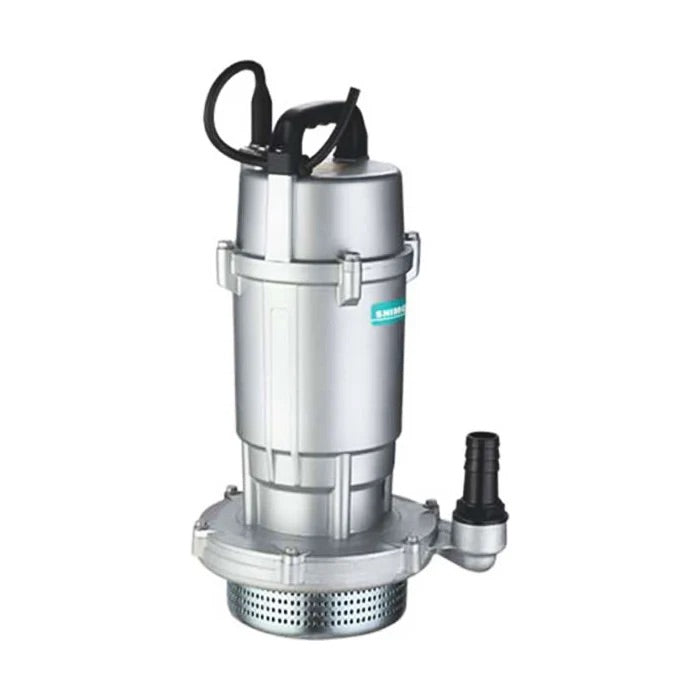

Shimge Submersible Drainage Pump (Clear Water) QDX
Performance Range
- Max. Flow: 60m³/h
- Max. Head: 33m
Application Limits
- Maximum liquid temperature +40℃
- pH level from 6.5-8.5
- Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
- Power frequency is 50Hz.Nominal voltage is 220VAC for single phase with the range from -10% to +10%.
- Immersion depth from 0.5m-5m
Applications Fields
With small size and light weight, the Q(D)X-L series pump is especially suitable for the rural wells water pumping, farmland irrigation and drainage, garden watering, water spraying and family households, as well as other applications such as industrial , construction, aquaculture, fish ponds, etc.
Features
- New-designed motor structure ,longer service life.
- Portable and durable aluminum alloy structure.
- Alloy impeller of high performance engineering plastics or aluminum.
Specification
| Model No. | Rated Power (KW) | Rated Power (PH/HP) | Head Range (m) | Rated Flow (m3/h) | Head Range (m)* | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| QDX1.5-17-0.037L2F | 0.37 | 0.5 | 4~19 | 1.5 | 17 | 25 |
| QDX1.5-25-0.55L2F | 0.55 | 0.75 | 17~26 | 1.5 | 25 | 25 |
| QDX1.5-32-0.75L2F | 0.75 | 1.0 | 17~32 | 1.5 | 32 | 25 |
| QDX10-16-0.75L2F | 0.75 | 1.0 | 10~19 | 10 | 16 | 51 |
| QDX15-7-0.55L2F | 0.55 | 0.75 | 2~9 | 15 | 7 | 64 |
| QDX3-30-1.1L2F | 1.1 | 1.5 | 0~30 | 3 | 30 | 25 |
| QDX40-6-1.1L2F | 1.1 | 1.5 | 0~7.5 | 40 | 6 | 76 |
| QDX15-14-1.1L2F | 1.1 | 1.5 | 0~17 | 15 | 14 | 64 |
