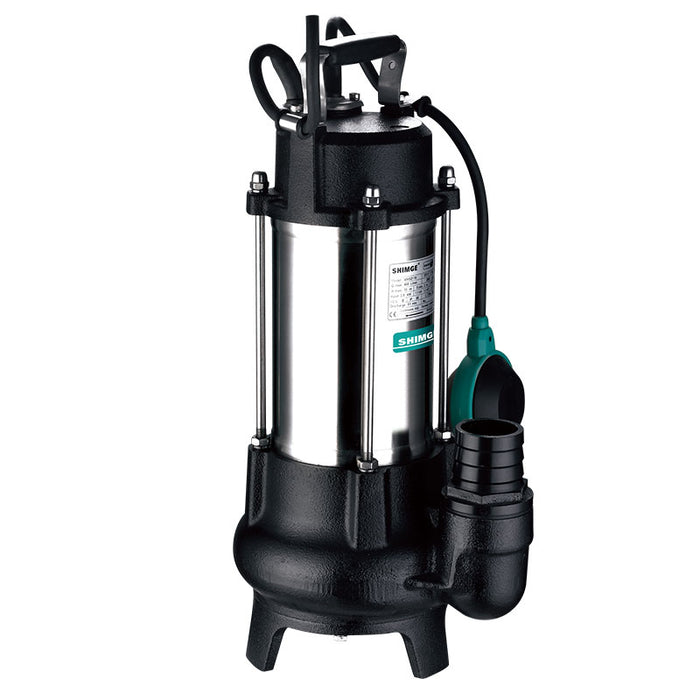

Shimge Stainless Steel Submersible Sewage Pumps WVS(D)
Performance Range
- Max. Flow: 30m³/h
- Max. Head: 15m
Application Limits
- Installing depth up to 5m
- Liquid temperature up to +40°C
- pH leveL from 6.5-8.5
- Maximum sand content is 0.1%.Passage of suspended solids up to 40mm
Application
- Suitable for transferring water without abrasive particleS
- Suitable for well water lifting, farm irrigation, garden irrigation and living water supply
- Suitable for industrial water eliminating, construction water supply and drainage,breeding industry water supply and drainage, etc.
Features
- New appearance design, high quality life
- Anti-overloading motor design, not easy to burn machine
- Lightweight design, easy to maintenance
- water from the bottom, extracting a lower water level;
- Adopt cast iron impeller, durable;
- Stainless steel screws, easy to maintain
Specification
| Model No. | Rated Power (kW) | Rated Power (HP)* | Head Range (m) | Rated Flow (m3/h) | Max Head (m)* | Outlet Diameter (mm) |
|---|---|---|---|---|---|---|
| WVSD55F | 0.55 | 0.75 | 5~9 | 18 | 10 | 51 |
| WVSD75F | 0.75 | 1.0 | 5~9 | 21 | 12 | 51 |
| WVSD110F | 1.1 | 1.5 | 5~9 | 27 | 13 | 51 |
| WVSD150F | 1.5 | 2.0 | 5~9 | 30 | 14 | 51 |
