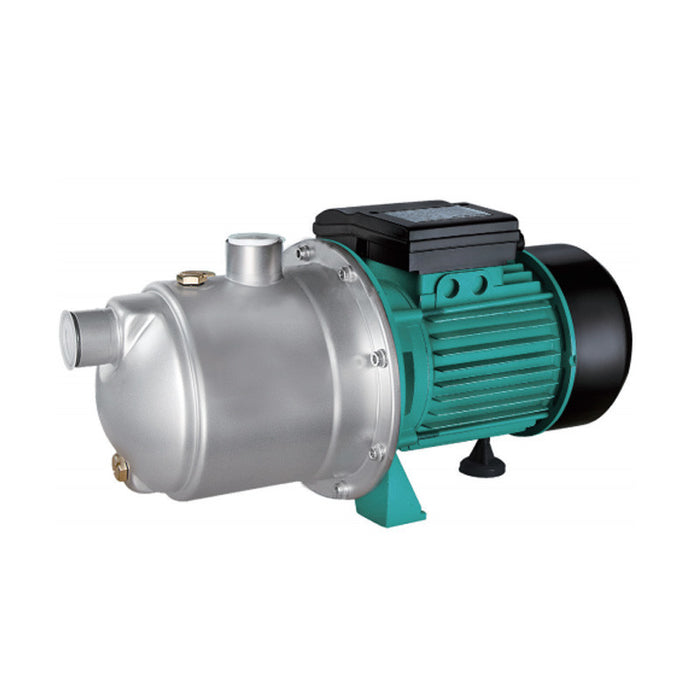

Shimge Stainless Head Self Priming JET Pumps JET G1
Performance Range
- Max. Flow: 6m3/h
- Max. Head: 48m
Application Limits
- Suction head up to 9m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Application Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
- 304 stainless steel pressed tensile pump body & pump cover
- Hydraulic optimization design, excellent performance
- Nozzle, guide vane and the impeller PPO engineering plastics
- Products are complete in specifications, meet drinking water standards
Motor
- Single-Phase 220V/50Hz
- Three-Phase 380V/50Hz
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection: IP44
- Insulation: Class B
Specification
| Model No. | Rated Power (kW) | Rated Power (HP) | Max Head (m) | Max Flow (m³/h) | Head Range (m) | Inlet/Outlet Diameter (inch) |
|---|---|---|---|---|---|---|
| JET320G1 | 0.37 | 0.5 | 28 | 3.5 | 2–30 | 1 |
| JET551G1 | 0.55 | 0.75 | 40 | 3.8 | 2–40 | 1 |
| JET751G1 | 0.75 | 1.0 | 48 | 3.8 | 4–48 | 1 |
