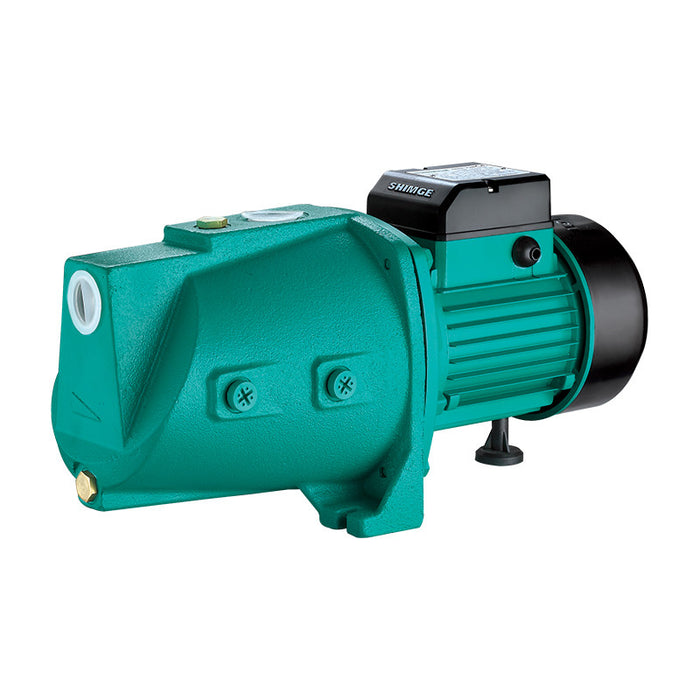

Shimge Self-Priming JET Pumps
Performance Range
- Max. Flow: 5.4m3/h
- Max. Head: 52m
Application Limits
- Suction head up to 9m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Application Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
- Complete models
- Copper impeller, stainless steel pump cover
- Pump body with installation foot set
Motor
- Single-Phase 220V/50Hz
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running\
- Protection: IP44
- Insulation: Class B
Specification
| Model No. | Rated Power (kW) | Rated Power (HP) | Max Head (m) | Max Flow (m³/h) | Head Range (m) | Inlet/Outlet Diameter (inch) | Suction (m) |
|---|---|---|---|---|---|---|---|
| JET370L1 | 0.37 | 0.5 | 32 | 3.0 | 2.5–32 | 1 | 8 |
| JET550L1 | 0.55 | 0.75 | 41 | 3.6 | 3–41 | 1 | 9 |
| JET750L1 | 0.75 | 1.0 | 46 | 4.5 | 4.5–46 | 1 | 9 |
| JET1100L1 | 1.1 | 1.5 | 50 | 5.4 | 12–45 | 1 | 9 |

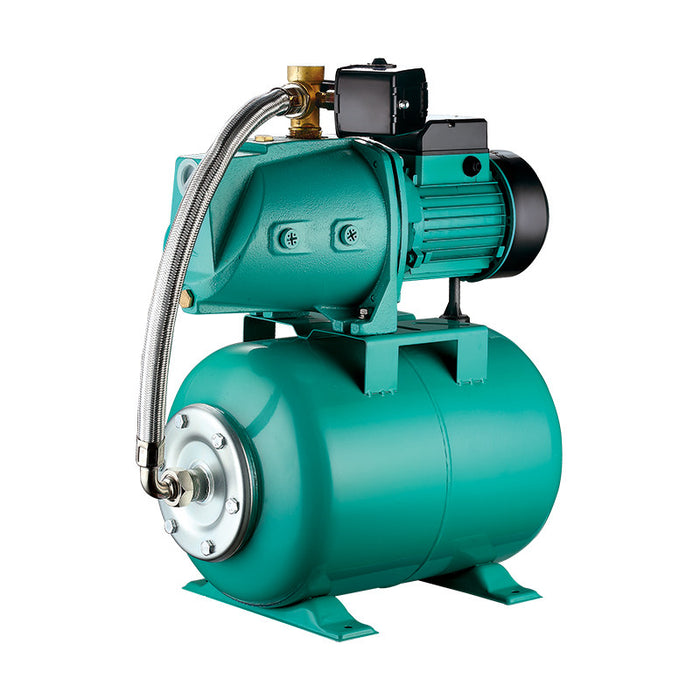

Jet Pump with Bladder Tank
|
Model No. |
Rated Power (kW) | Rated Power (HP) | Max Head (m) | Max Flow (m³/h) | Head Range (m) | Inlet/Outlet Diameter (inch) | Max Suction (m) |
|---|---|---|---|---|---|---|---|
| JET370L1+24L | 0.37 | 0.5 | 32 | 3.0 | 2.5-32 | 1 | 8 |
| JET550L1+24L | 0.55 | 0.75 | 41 | 4.5 | 4.5-46 | 1 | 9 |
| JET750L1+24L | 0.75 | 1.0 | 36 | 4.5 | 2.5-32 | 1 | 9 |
| JET1100L+50L | 0.8 | 1 | 50 | 5.4 | 2.5-32 | 1 | 9 |
