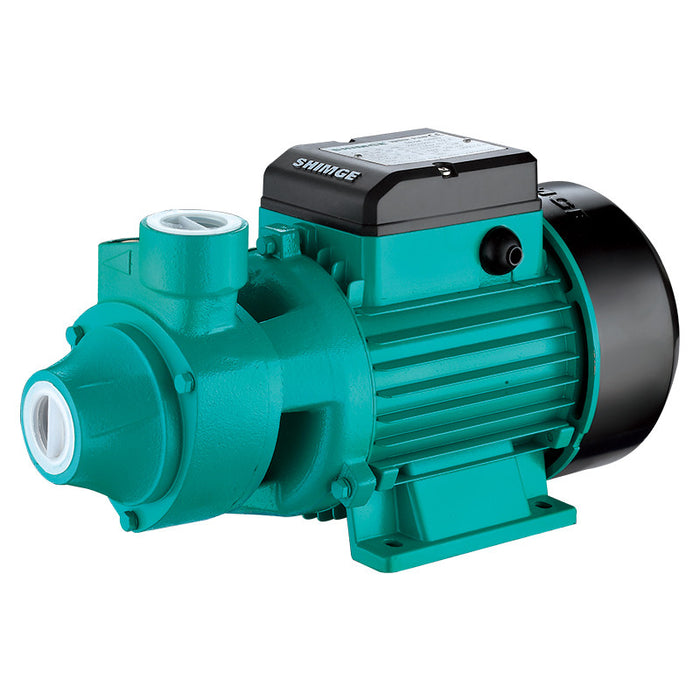

Shimge Peripheral Pumps QB
Performance Range
- Max. Flow: 3.6m³/h
- Max. Head: 60m
Application Limits
- Suction head up to 8m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10% of rated value
- pH: 6.5 to 8.5
Features
- Small size,high pressure
- Easy installation & maintenance
- Stainless Steel Inserts
Application Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water
- Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage,various corollary equipment, etc.
- Insulation class: F
Specification
| Model No. | Rated Power (kW) | Rated Power (HP) | Max Head (m) | Max Flow (m3/h) | Head Range (m) | Inlet/Outlet Diameter (inch) |
|---|---|---|---|---|---|---|
| QB60L 1 | 0.37 | 0.5 | 33 | 2.4 | 1–27 | 1 |
| QB70G | 0.55 | 0.75 | 48 | 3.0 | 1–27 | 1 |
| QB80G | 0.75 | 1.0 | 60 | 3.6 | 1–27 | 1 |

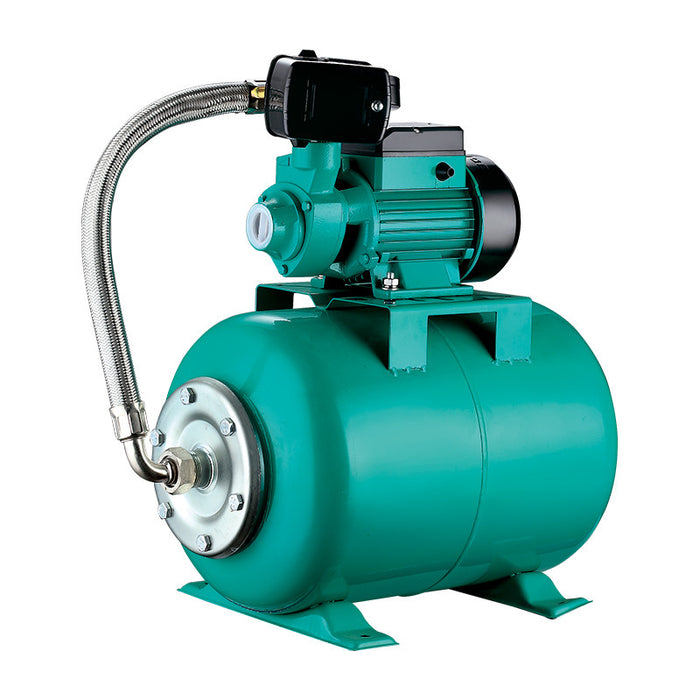

Booster with Bladder Tank
| Model No. | Rated Power (kW) | Rated Power (HP) | Max Head (m) | Max Flow (m³/h) | Head Range (m) | Inlet/Outlet Diameter (inch) |
|---|---|---|---|---|---|---|
| QB60L1+24L | 0.37 | 0.5 | 33 | 2.4 | 1–7 | 1 |
| QB80G+24L | 0.75 | 1.0 | 60 | 3.6 | 2.5–53 | 1 |
