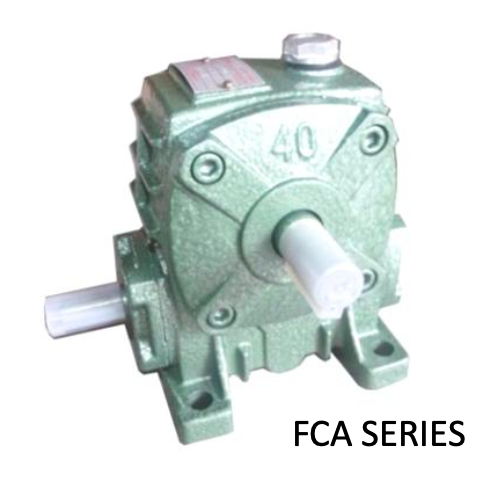

Rohm Gear Reducer -FCA Series (German Technology)
Specification:
Gear reducer can be used in wide variety of equipment such as power equipment,
mining equipment, metallurgical equipment, construction equipment, cement
processing equipment, chemical equipment, pharmaceutical equipment, tobacco
equipment, printing equipment, food processing equipment, electronic devices,
wood processing equipment and paper making equipment among others
| Model | Ratio | Input Shaft | Output Shaft | ||
|---|---|---|---|---|---|
| Length | Diameter | Length | Diameter | ||
| FCA - 40 | 10:1, 20:1, 30:1, 40:1, 50:1, 60:1 | 25mm | 12mm | 28mm | 14mm |
| FCA-50 | 10:1, 20:1, 30:1, 40:1, 50:1, 60:1 | 30mm | 12mm | 40mm | 17mm |
| FCA-60 | 10:1, 20:1, 30:1, 40:1, 50:1, 60:1 | 40mm | 15mm | 50mm | 22mm |
| FCA-70 | 10:1, 20:1, 30:1, 40:1, 50:1, 60:1 | 40mm | 18mm | 60mm | 28mm |
| FCA-80 | 20:1, 30:1, 40:1, 50:1, 60:1 | 50mm | 22mm | 65mm | 32mm |
| FCA-100 | 20:1, 30:1, 40:1, 50:1, 60:1 | 50mm | 25mm | 75mm | 38mm |
| FCA-120 | 20:1, 30:1, 40:1, 50:1, 60:1 | 65mm | 30mm | 85mm | 45mm |
| FCA-135 | 20:1, 30:1, 40:1, 50:1, 60:1 | 75mm | 35mm | 95mm | 55mm |
| FCA-155 | 20:1, 30:1, 40:1, 50:1, 60:1 | 85mm | 40mm | 110mm | 60mm |
| FCA-175 | 20:1, 30:1, 40:1, 50:1, 60:1 | ||||
| FCA-200 | 20:1, 30:1, 40:1, 50:1, 60:1 | ||||
| FCA-250 | 20:1, 30:1, 40:1, 50:1, 60:1 | ||||
