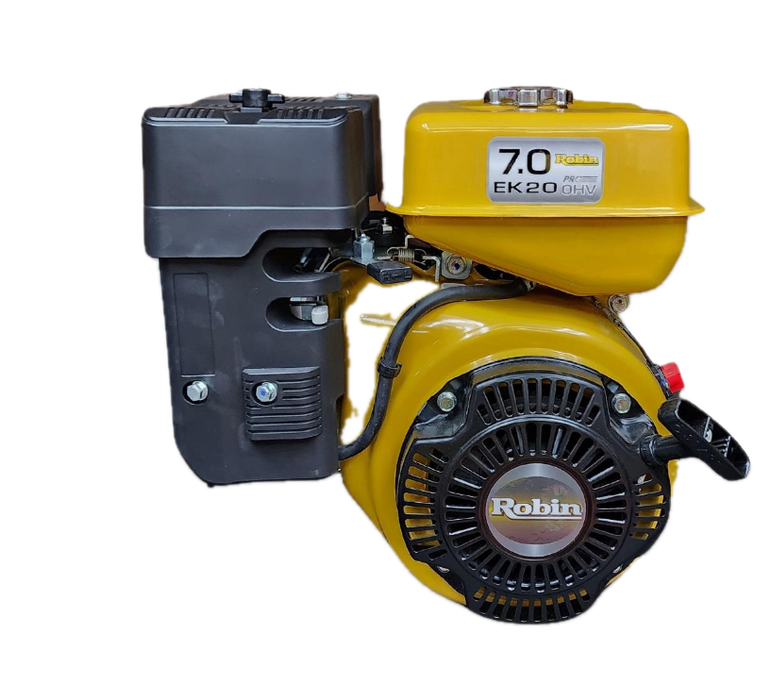

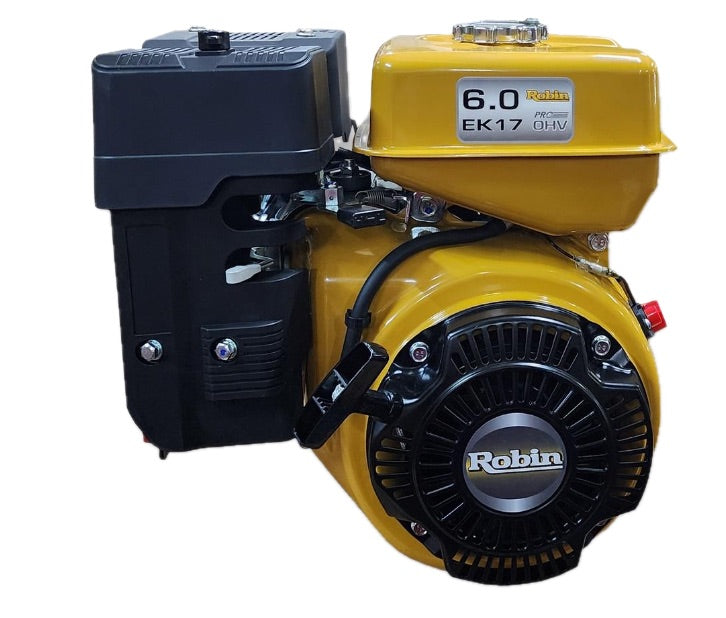

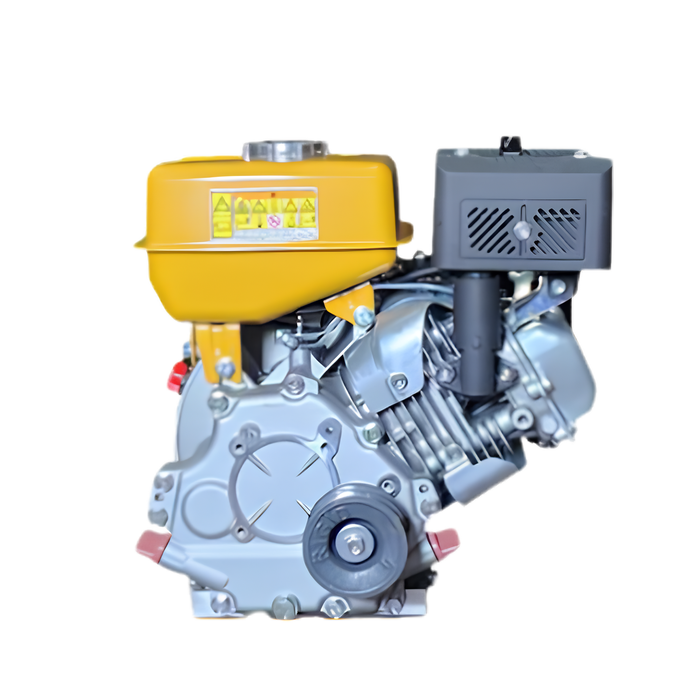

Robin Gasoline Engine EK Series
Specification
| Model | EK-17D | EK-20D | EK-20B |
|---|---|---|---|
| Type | Air- Cooled, 4 Stroke Single Cylinder, overhead valve, gasoline engine | Air- Cooled, 4 Stroke Single Cylinder, overhead valve, gasoline engine | Air- Cooled, 4 Stroke Single Cylinder, overhead valve, gasoline engine |
| Displacement | 169cc | 195cc | 195cc |
| Continous Output | 4.5hp /3600rpm | 5hp /3600rpm | 5hp /1800rpm |
| Maximum Output | 6hp /3600rpm | 7hp /3600rpm | 7hp /1800rpm |
| Direction of Rotation | Counterclockwise | Counterclockwise | Counterclockwise |
| Oil Capacity | 0.6L | 0.6L | 0.6L |
| Lubricant | Automotive Detergent Oil (SAE /10W-30) | Automotive Detergent Oil (SAE /10W-30) | Automotive Detergent Oil (SAE /10W-30) |
| Fuel | Automotive Gasoline (Unleaded) | Automotive Gasoline (Unleaded) | Automotive Gasoline (Unleaded) |
| Fuel Tank Capacity | 3.7L | 3.7L | 3.7L |
| Spark Plug | Torch E6TC | Torch E6TC | Torch E6TC |
| Starting System | Recoil Starter | Recoil Starter | Recoil Starter |
