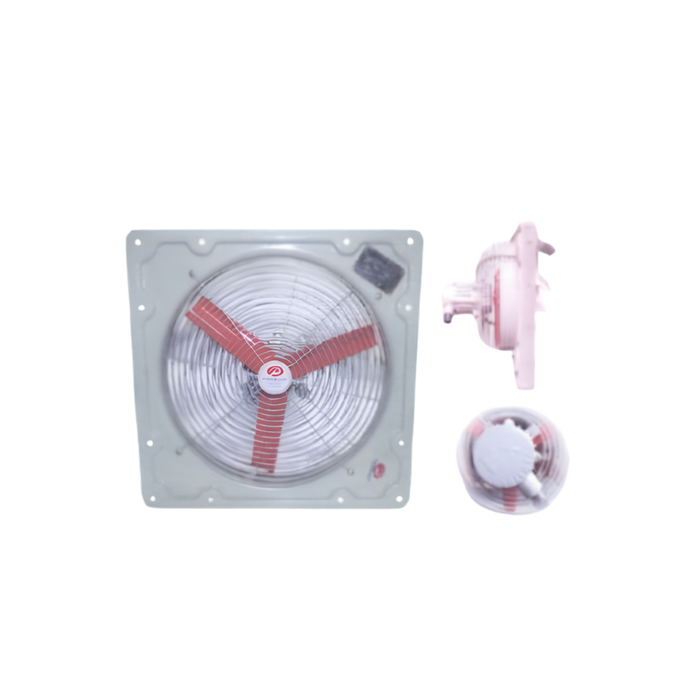

Pioneer Explosion Proof Exhaust Fan with Shutter
Features:
BPS series flame proof industrial fan applied in the condition of explosion-proof gas compound with factory II type Grade A, B and the temperature T1-T4
It widely used for ventilation and sunstroke in office, oil, military industry, chemical industry, medicine, metallurgy, etc., We also get explosion-proof certificate. The impeller made of aluminum alloy has strong points such as operate steadily, beauty appearance, rational structure, etc.,
Specification
| Model | BPS-30 | BPS-40 | BPS-50 |
|---|---|---|---|
| Diameter (mm) | 12" | 16" | 20" |
| Voltage (V) | 220~240 | 220~240 | 220~240 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 |
| Speed (r/min) | 1400/1720 | 1400/1720 | 1400/1720 |
| Watts (W) | 120/150 | 180/220 | 370/450 |
| Capacity Air Flow (m³/min) | 30/35 | 58/68 | 100/120 |
| Static (pa) | 45/60 | 90/130 | 100/140 |
Dimension
| Dimension | BPS-30 | BPS-40 | BPS-50 |
|---|---|---|---|
| A | 400 | 500 | 600 |
| B | 350 | 462 | 560 |
| C | 130 | 243 | 293 |
| E | 10 | 10 | 10 |
| F | 10 | 10 | 10 |
| G | 255 | 285 | 295 |
| H | 180 | 193 | 203 |
| J | 75 | 98 | 108 |
