Pioneer Portable Ventilator | Ventilator/Blower

Pioneer Portable Ventilator | Ventilator/Blower

by Pioneer
Sale
₱13,000.00
₱4,200.00
Model/Size
Type

Pioneer Portable Ventilator/Blower

Pioneer Portable Ventilator with or without 1pc. hose | Ventilator/Blower

Specifications:

  • Brand : Pioneer
  • Size : 8"/10"/12"/14"/16"/24"
  • Made in Taiwan.
  • NOTE: 1pc. of hose included and expandable up to 5m. Hose is made of vinyl plastic. We also sell additional extra hose.

Features :

  • 100% Copper winding.
  • Industrial Grade fan
  • Thick Metal Blade
  • Excellent performance and strong wind suction.
  • Light weight, so easy to move on the ground,

Application :

  • Exhaust Air / Suction / Dust removal
  • Widely used in repairing or shipbuilding, engine room, fire smoke, municipal engineering, communications engineering industry and other underground workings ventilation.
  • Metallurgy, Residential, workshop, Petroleum, Chemical industry, Gas Station

We also have explosion proof ventilator.

Note : Color may change without prior notice.

Kindly send us a message for inquiry.

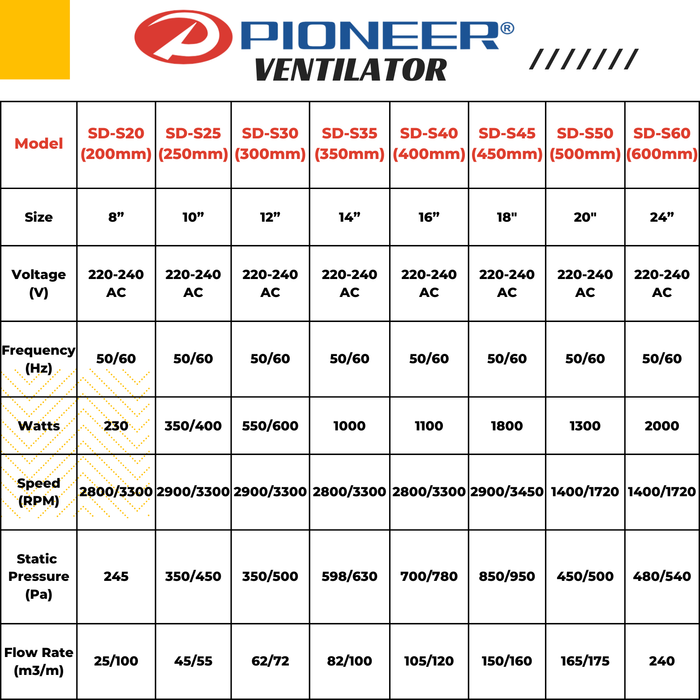

Model SD-S20 (200mm) SD-S25 (250mm) SD-S30 (300mm) SD-S35 (350mm) SD-S40 (400mm) SD-S45 (450mm) SD-S50 (500mm SD-S60 (600mm)
Size 8” 10” 12” 14” 16” 18" 20" 24"
Voltage (V) 220-240 AC 220-240 AC 220-240 AC 220-240 AC 220-240 AC 220-240 AC 220-240 AC 220-240 AC
Frequency (Hz) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Watts 230 350/400 550/600 1000 1100 1800 1300 2000
Speed (RPM) 2800/3300 2900/3300 2900/3300 2800/3300 2800/3300 2900/3450 1400/1720 1400/1720
Static Pressure (Pa) 245 350/450 350-500 598/630 700/780 850/950 450/500 480/540
Flow Rate (m3/m) 25/100 45/55 62/72 82/100 105/120 150/160 165/175 240
