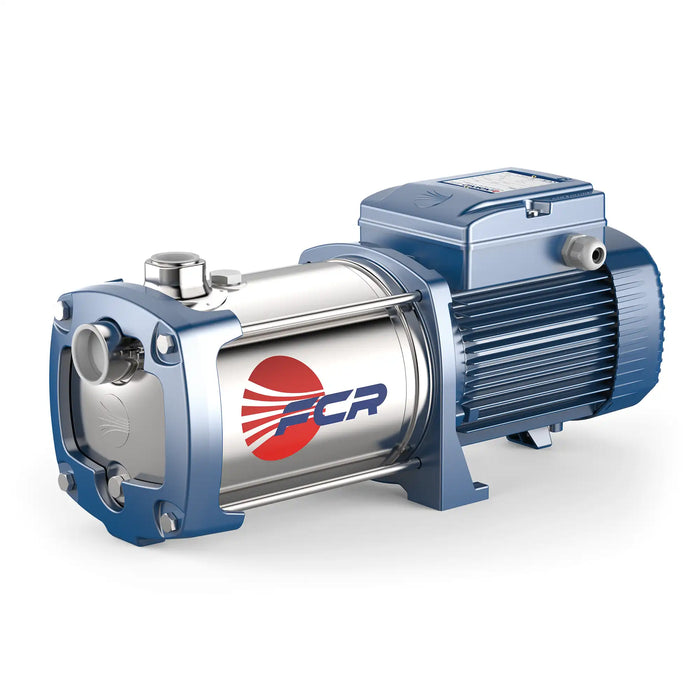

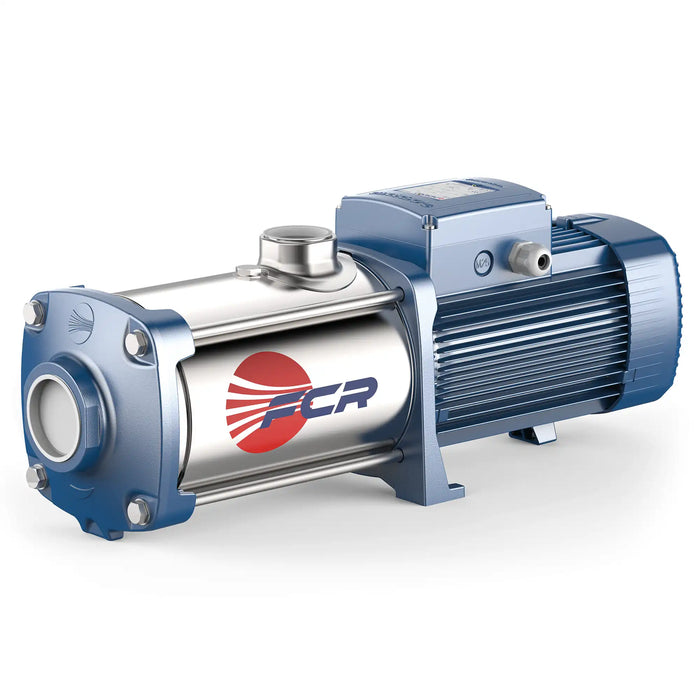

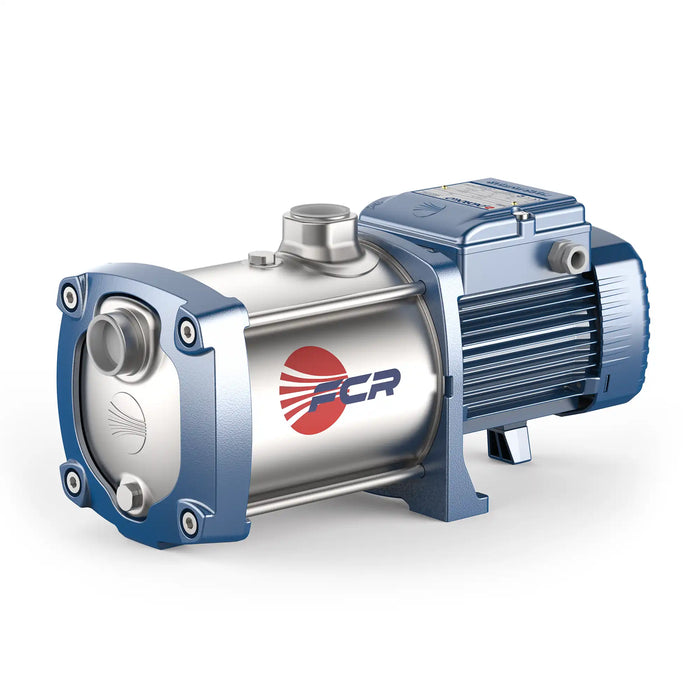

Pedrollo Stainless Steel Horizontal Multi-Stage Centrifugal Pumps - FCR Series - Made In Italy

Pedrollo Stainless Steel Horizontal Multi-Stage Centrifugal Pumps - FCR Series - Made In Italy

by Pedrollo
₱19,800.00
Model

Pedrollo Stainless Steel Horizontal Multi-Stage Centrifugal Pumps - FCR Series- Made In Italy

Features:

Flow rate

up to 130 l/mi

n (7.8 m³/h)
Head up up to 67 m
Manometric suction head up to 7 m
Liquid temperature between -15 °C and +90 °C
Ambient temperature up to +40 °C
Maximum working pressure 12 bar
Motor 2 poles
Ingress protection rating IP 55
  • Pump Body:  Stainless steel AISI 304
  • Impellers : Stainless steel AISI 304
  • Diffusers : Stainless steel AISI 304
  • Shaft : Stainless steel AISI 316L
  • Pump cover : Stainless steel AISI 304

Specification:

Model Power P2 Performance Ports
Single Phase KW HP Q (L/min) H (m) DN1 DN2
FCRm 80/2 0.37 0.5 5-70 26-5
1”
1”
FCRm 80/3 0.45 0.6 5-80 38-5
FCRm 80/4 0.55 0.75 5-80 50-10
FCRm 80/5 0.75 1 5-80 66-12
FCRm 100/3 0.55 0.75 5-120 37-5
FCRm 100/4 0.75 1 5-130 50-5
FCRm 100/5 1.1 1.5 5-130 62-8
FCRm 90/5 1.1 1.5 5-90 78-38
1 1/4”
FCRm 90/6 1.5 2 5-90 94-45
FCRm 90/7 1.8 2.5 5-90 110-53
FCRm 130/3 1.1 1.5 5-130 49-24
FCRm 130/4 1.5 2 5-130 65-31
FCRm 130/5 1.8 2.5 5-130 81-39
FCRm 130/6 2.2 3 5-130 97-46
FCRm 200/3 1.1 1.5 20-200 43-13
FCRm 200/4 1.5 2 20-200 57-17
FCRm 200/5 1.8 2.5 20-200 71-22
FCRm 200/6 2.2 3 20-200 85-26



Model Power P2 Performance Ports
Three Phase KW HP Q (L/min) H (m) DN1 DN2

FCR 80/2
0.37
0.5
5-70
26-5
1”
1”

FCR 80/3
0.45
0.6
5-80
38-5

FCR 80/4
0.55
0.75
5-80
50-10

FCR 80/5
0.75
1
5-80
66-12

FCR 100/3
0.55
0.75
5-120
37-5

FCR 100/4
0.75
1
5-130
50-5

FCR 100/5
1.1
1.5
5-130
62-8

FCR 90/5
1.1
1.5
5-90
78-38
1 1/4”

FCR 90/6
1.5
2
5-90
94-45

FCR 90/7
1.8
2.5
5-90
110-53

FCR 130/3
1.1
1.5
5-130
49-24

FCR 130/4
1.5
2
5-130
65-31

FCR 130/5
1.8
2.5
5-130
81-39

FCR 130/6
2.2
3
5-130
97-46

FCR 200/3
1.1
1.5
20-200
43-13

FCR 200/4
1.5
2
20-200
57-17

FCR 200/5
1.8
2.5
20-200
71-22

FCR 200/6
2.2
3
20-200
85-26

FCR 15/2
5.5
7.5
50-500
68-21.5
2 1/2”
2”

FCR 15/3
7.5
10
50-500
102-32.5

FCR 15/4
9.2
12.5
200-500
123-43.5

FCR 30/2
7.5
10
100-900
56.5-17

FCR 30/2
9.2
12.5
100-900
84-25.5



Kit Flanges
For FCR 80 and FCR 100 DN 25 (1") + DN 25 1"
For FCR 90, FCR 130 and FCR 200 DN 32 (1 1/4") + DN 25 (1")
For FCR 15 and FCR 30 DN 65 (2 1/2" + DN 50 (2")
