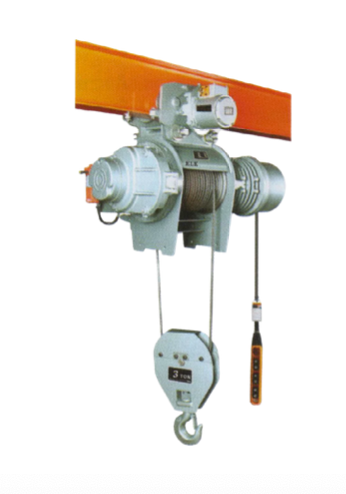

Nippon Electric Wire Rope Hoist without Single Rail Trolley
3 PHASE, 220V/440V, 60HZ, 1656RPM
Specification
| Model | HKDS 0202S | HKD 0302S | HKD 0504S |
|---|---|---|---|
| Lifting Weight | 2-T | 3-T | 5-T |
| Lifting Height | 12 MTR | 12 MTR | 12 MTR |
| Hz | 60 | 60 | 60 |
| Power Capacity | 4HP (3kw) | 7.5 HP (5.5kw) | 10HP (7.5kw) |
| Voltage | 220/440V | 220/440V | 220/440V |
| Lifting Speed | 10.0/min | 9.0/min | 8.0/min |
| Wire Rope Diameter | 12mm 2 falls | 14mm 2 falls | 12mm 4 falls |
| RPM | 1656 | 1656 | 1656 |
| Material | Metal Iron | Metal Iron | Metal Iron |
