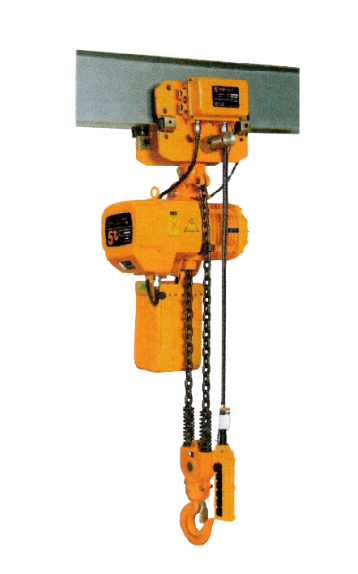

Nippon Electric Chain Hoist (ER Type) Hoist with Trolley
Power Supply: 220V/440V, 60HZ, 3Phase, Control Voltage: 24V
Specification
| Model | SSDHL02-01M & DPC-02 (ER2) | SSDHL02-01M & DPC-03 (ER2) | SSDHL05-02M & DPC-05 (ER2) |
|---|---|---|---|
| Lifting Weight | 2-T | 3-T | 5-T |
| Lifting Height | 6 MTR | 6 MTR | 6 MTR |
| Hz | 60 | 60 | 60 |
| Power Capacity | 3KW | 3KW | 3KW |
| Voltage | 220/440V | 220/440V | 220/440V |
| Lifting Speed | 6.6m/min | 5.4m/min | 2.7m/min |
| Chain Diameter | 10.0mm 1 fall | 11.2mm 1 fall | 11.2mm 1 fall |
| Trolley Speed | 11 or 21 m/min | 11 or 21 m/min | 11 or 21 m/min |
