Motorstar Air-Cooled Diesel Engine Pump
SPECIFICATIONS:
- Compact/lightweight general-purpose pumps with high performance and easy handling.
- A special self-priming circuit provides outstanding self-priming performance.
- The impeller is made of cast iron, for outstanding wear resistance and long life.
- The shaft seals are high-quality mechanical seals.
- A special design is used to mount the powerful electronic engine.
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
MS50 2" X 2"
- Power: 5HP
- Size: 2" X 2"
- Max Suction: Head (ft) : 49.2
- Total Head (ft): 85.3
- Max FlowRate (Us gal/min) 159
- Engine Type: 170F
- Speed (rpm): 3600
- Displacement (cu. În) : 12.8
MS80 3" X 3"
- Power: 5HP
- Size: 3" X 3"
- Max Suction: Head (ft) : 42.7
- Total Head (ft): 82.02
- Max FlowRate (Us gal/min) 220
- Engine Type: 178F
- Speed (rpm): 3600
- Displacement (cu. În) : 18.1

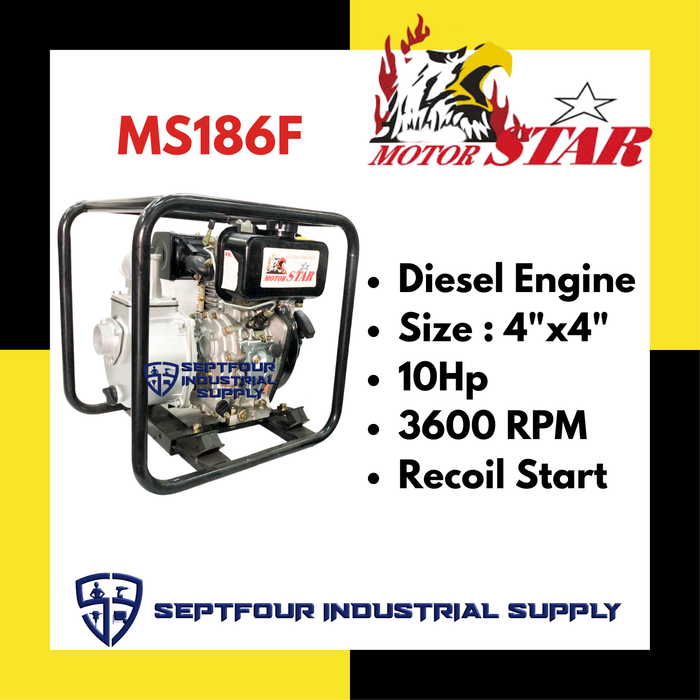

MS100 4" X 4"
- Power: 10HP
- Size: 4” x 4”
- Max Suction: Head (ft) : 52.5
- Total Head (ft): 101.7
- Max FlowRate (Us gal/min) 422
- Engine Type: 186F
- Speed (rpm): 3600
- Displacement (cu. În) : 24.8
Common Application:
- Construction/Civil Engineering Pumps
- Gardening Pumps
- Agricultural Pumps
- Fishing Pumps
Available Size : 2"x2", 3"x3", 4"x4", 5"x5", 6"x6"

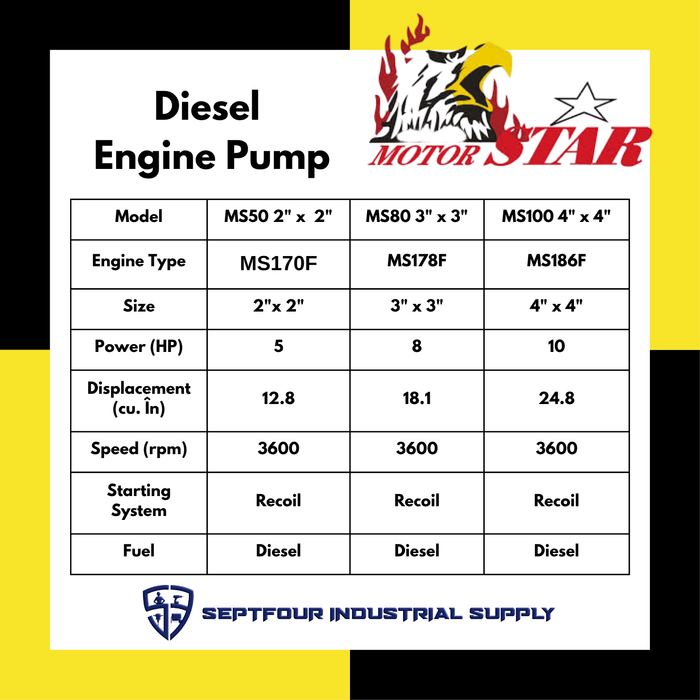

| Model | MS50 2" X 2" | MS80 3" X 3" | MS100 4" X 4" |
|---|---|---|---|
| Power | 5HP | 8HP | 10HP |
| Size | 2" X 2" | 3" X 3" | 4" X 4" |
| Max Suction: Head (ft) : | 49.2 | 42.7 | 52.5 |
| Total Head (ft): | 85.3 | 82.02 | 101.07 |
| Max FlowRate (Us gal/min) | 159 | 220 | 422 |
| Engine Type: | 170F | 178F | 186F |
| Speed (rpm): | 3600 | 3600 | 3600 |
| Displacement (cu. În) : | 12.8 | 18.1 | 24.8 |
Kindly send us a message for more inquiry.
