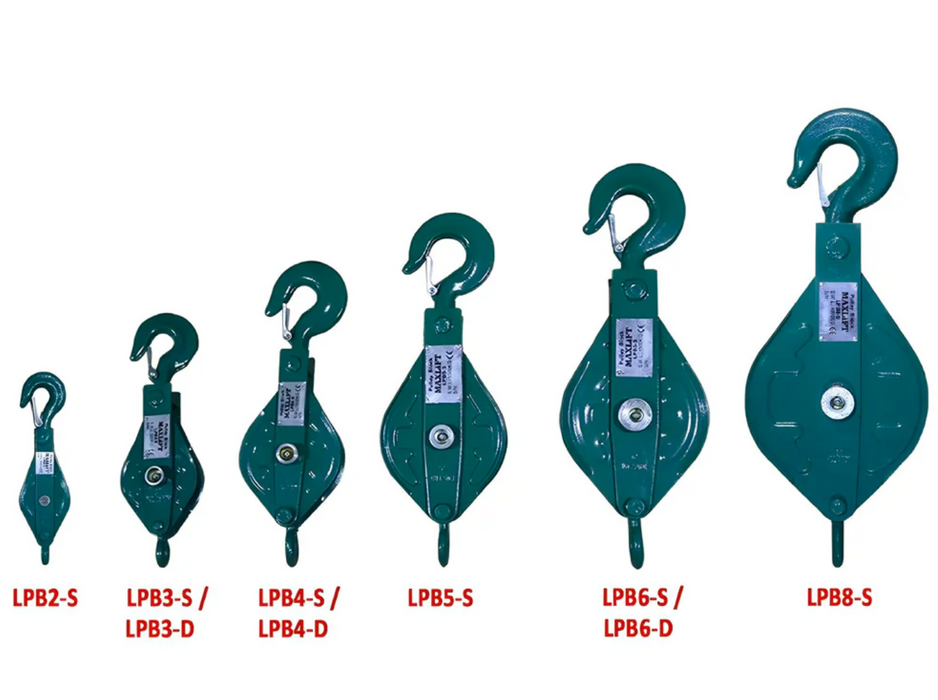

Maxlift Pulley Block with Hook
Specification
| Model | S.W.L (Safe Working Load) | Sheave Size Ø | Wire Rope Size Ø | Overall Size (mm) | Weight |
|---|---|---|---|---|---|
| LPB2-S | 0.25 Tons | 2" | 8 mm | 225 x 60 x 40 | 0.60 kg |
| LPB3-S | 0.50 Tons | 3" | 8 mm | 286 x 87 x 50 | 1.6 kg |
| LPB4-S | 1 Tons | 4" | 10 mm | 311.5 x 112 x 55.5 | 3.5 kg |
| LPB5-S | 1.5 Tons | 5" | 13 mm | 410 x 140 x 63.5 | 4.6 kg |
| LPB6-S | 2 Tons | 6" | 16 mm | 442.5 x 168 x 101 | 7.7 kg |
| LPB8-S | 4 Tons | 8" | 22 mm | 590.5 x 226 x 128 | 19.3 kg |
| LPB3-D | 0.50 Tons | 3" | 8 mm | 286 x 87 x 77 | 2.8 kg |
| LPB4-D | 1 Tons | 4" | 10 mm | 311.5 x 112 x 88 | 4.3 kg |
| LPB6-D | 2 Tons | 6" | 16 mm | 442.5 x 168 x 146 | 12.2 kg |
