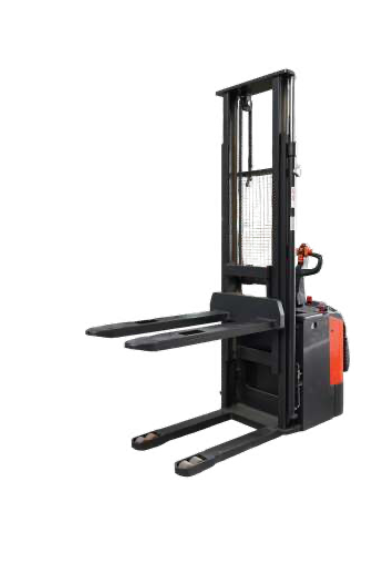

Maxlift 20T Full Electric Stacker LFS-2T
Specification
- Load Capacity: 2.0 Tons (2000 kg)
- Lifting Height: 3600 mm
- Fork Height: 3530 mm
- Lowered Height: 85 mm
- Ground Clearance: 70 mm
- Tire Size, front and rear : Ø230 x 70 & Ø 80 x 70 mm
- Overall Height : 2305 mm
- Overall Length: 2115 mm
- Overall Width: 820 mm
- Fork Dimensions : 180 x 685 x 1150 mm
- Battery : Lead Acid, 24 / 160 V/Ah, 155 kg
- Platform: 503 x 455 mm
- Turning radius: 1670 mm
- Travel Speed: 5.5 / 6 km/h
- Lift Speed: 0.01 / 0.16 m/s
- Lowering Speed: 0.11 / 0.1 m/s
- Service Brake: Electromagnetic
- Wheel Type: Polyurethane (PU)
- Self Weight: 1305 kg
