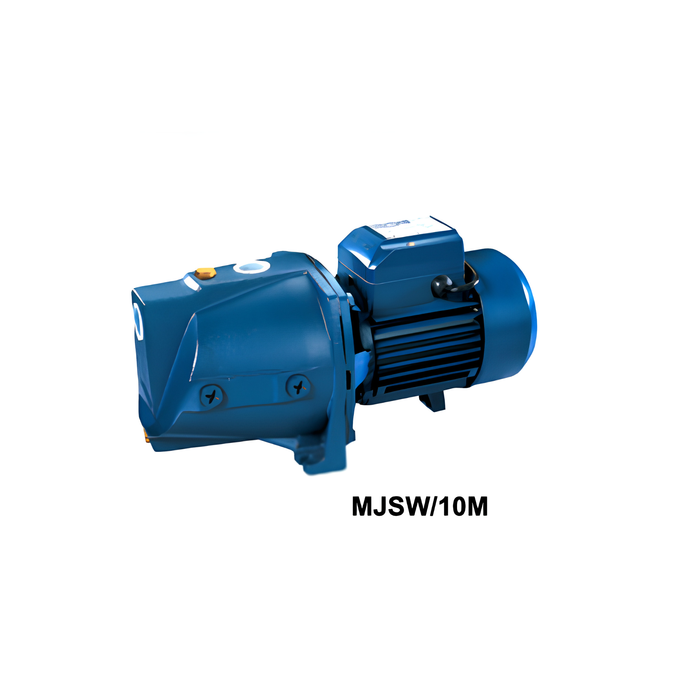

Luckypro Self-Priming Jet Pump MJSW/10M
Performance Task
- flow rate up to 80 l/min.(4.8 m³/h)
-
head up to 72 m
Operating Task
- suction lift up to 9 m
- fluid temperature up to 40°C
- maximum ambient temperature 40°C
Pumps Installation and Application
These pumps are suitable for pumping clean water and fluids which are not chemically aggressive to the pump components.They are extremely reliable, economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks, watering gardens, etc. These pumps should be installed in a covered area, protected against the weather.N.B. It is always advisable to install a foot valve or a non-retum valve on the suction opening.
Performance
The wide range of pumps in the MJSW series satisfies the most varied requirements with features such as :
- high heads with respect to power requirements;
- flat operating and power absorption curves,giving moderate curve variations with respect to large variations in delivery demand;
- high tolerance of the presence of entrained air in the fluid to be pumped;
- suction capacity up to 9 meters.
Structural Characteristic
- cast iron pump body
- stainless steel pump body cover
- stainless steel mechanical seal(graphite to ceramic or graphite to SiC)
- brass impeller with centrifugal radial flow type
- Stainless steel shaft (Hi-Cr plated 45# steel up to 0.75kw)
- protection IP44
- with thermal overload protector in single phase motor
- NSK bearing or local bearing
Specification
- Model: MJSW/10M
- Power: 0.75kw / 1HP
- Single Phase
