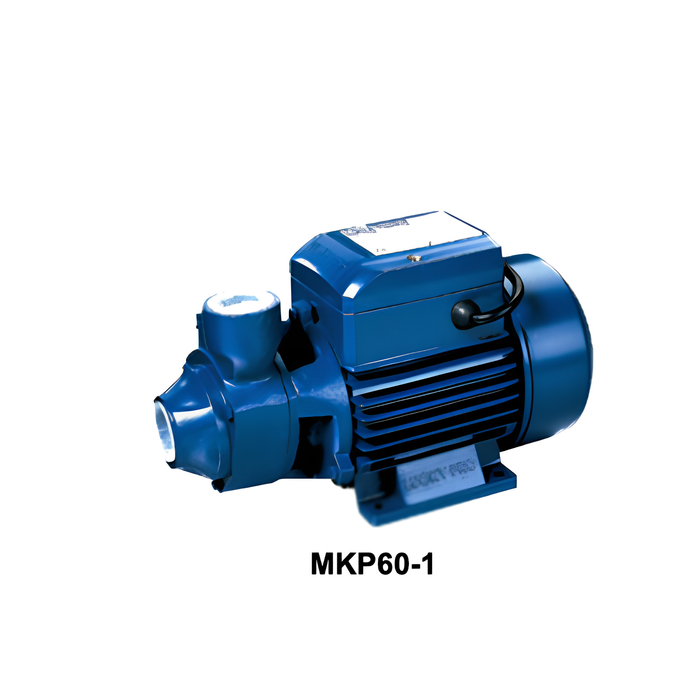

Luckypro 1/2HP Peripheral Pump MKP60-1
Performance Range
- flow rate up to 90 l/min.(5.4m³/h)
- head up to 100 m
Operating Limits
- suction lift up to 8 m
- fluid temperature up to 60°C
- maximum ambient temperature 40°C
Pumps Installation & Application
These pumps are suitable for handling clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.Reliable,economical and simple to use,they are suitable for domestic applications and the automatic distribution of water from surge tanks,watering gardens and for boosting insufficient mains water pressure. These pumps should be installed in a covered area,protected against the weather.
Performance
- high heads with respect to power requirements.
- stable operating curves,with small variations in delivery rates with respect to large variations in the pressure demand.
- high tolerance of the presence of entrained air in the liquid being pumped.
Structural Characteristics
- cast iron pump body
- stainless steel mechanical seal(graphite to ceramic)
- brass impeller with radial peripheral blades
- protection IP44
- Hi-Cr plated 45# steel shaft
- with thermal overload protector in single phase motor
- NSK bearing or local bearing
Specification
- Model: MKP60-1
- Power: 0.37kw 0.5HP
