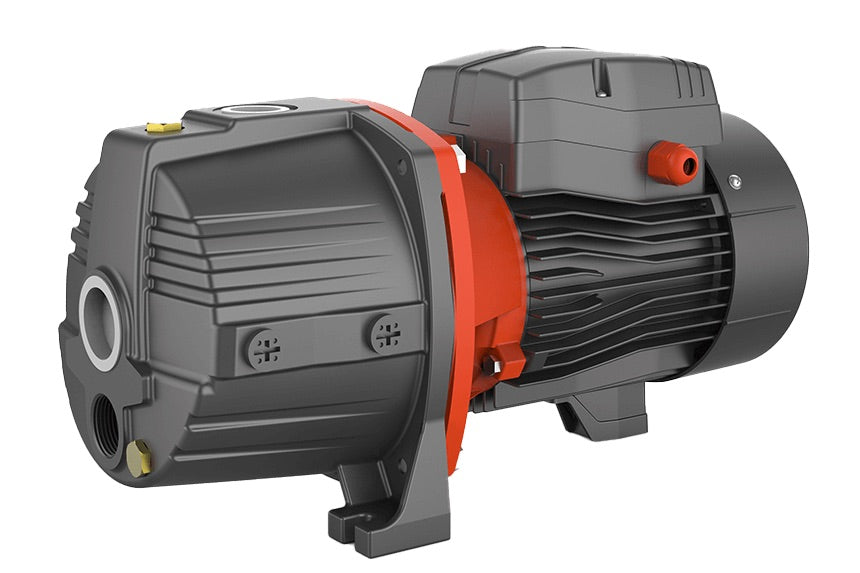

Leo Jet Pumps (AJDm)
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting of running water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- Stainless steel impeller
- AISI 304 shaft
- Max. liquid temperature: +60°C
- Max. suction: +40 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max.ambient temperature: +50°C
| Model | Motor Power (HP) | Motor Power (kW) | Impeller Material | Suction Port (INCH) | Discharge (INCH) |
Min Head (M) | Max Head (M) | Min Flow (LPM) | Max Flow (LPM) |
|---|---|---|---|---|---|---|---|---|---|
| AJDm75/2H | 1.0 | 0.75 | SS304 | 1-1/4" | 1" | 17 | 36 | 0.00 | 18 |
| AJDm75/4H | 1.0 | 0.75 | Carbon/Ceramic | 1-1/4" | 1" | 17 | 50 | 0.00 | 30 |
| AJDm110/4H | 1.5 | 1.10 | Carbon/Ceramic | 1-1/4" | 1" | 29 | 75 | 0.00 | 34 |
