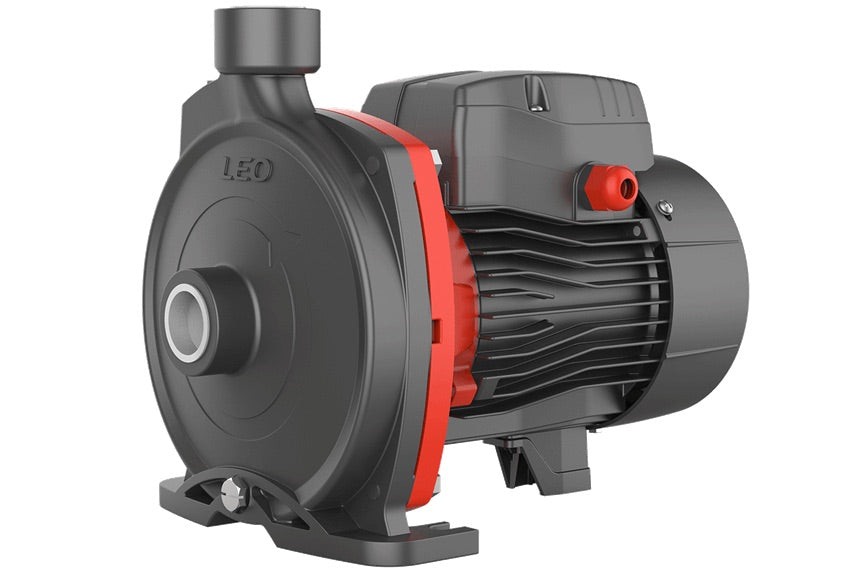

Leo Centrifugal Pump (ACm)
Application
- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for cold and hot water, and supporting equipment etc.
Pump
- Cast iron pump body and support under special anti-rust treatment
- AISI 304 shaft
- Max. liquid temperature: +60°C
- Max. suction: +8 m
Motor
- Low noise&Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- Insulation class: F
- Enclosures class: IPX4
- Max.ambient temperature: +50°C
- IE 2 motor (Three phase, power ≥ 0.75kW)
| Model | Motor Power (HP) |
Motor Power (kW) | Impeller Material | No. Of Stages | Suction (INCH) |
Discharge (INCH) | Min Head (m) | Max Head (m) | Min Flow (LPM) | Max Flow (LPM) |
|---|---|---|---|---|---|---|---|---|---|---|
| ACm220CH2 | 3.0 | 2.2 | Brass | 1 | 2" | 2" | 18.5 | 30.0 | 100.00 | 450 |
| ACm150B2 | 2.0 | 1.5 | SS304 | 1 | 2" | 2" | 9.5 | 22.0 | 50.00 | 500 |
| 2AC300H | 4.0 | 3.0 | SS304 | 2 | 1-1/2" | 1-1/4" | 33.0 | 67.0 | 40.00 | 250 |
| 2AC400H | 5.5 | 4.0 | SS304 | 2 | 1-1/2" | 1-1/4" | 45.5 | 79.5 | 40.00 | 250 |
