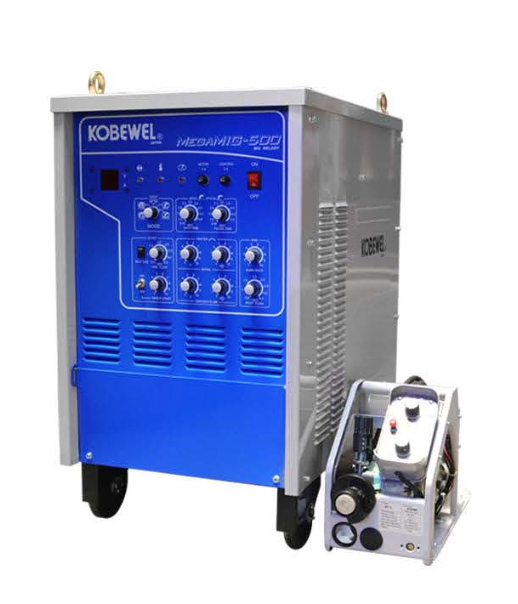

Kobewel 500A MIG/MAG ARC Welding Machine MEGAMIG-500
(With Separate Wire Feeder)
Specification
- Input Voltage 220 V
- Frequency I Phase 60 Hz / 3 Ph
- Input Power 29.6 kVA
- Power Factor 0.85
- Current Range 40 - 500 A
- Duty Cycle 50% @ 500A
- 100% @ 360A
- No Load Voltage 16 - 50 V
- Adjustment Range Continuous
- Wire Size MS/SS= 0.6 - 2.0 mm
AL= 0.8 - 2.0 mm - Input / Welding Cable 6/70 mm2
-
Weight 213 Kg
-
Welding Parameter
- Spot Time: 0.35 - 5.0 sec
- Interval Time: 0.35 - 5.0 sec
- Gas Pre-flow Time: 0 - 0.6 sec
- Soft Start Time: 0.4 - 1.7 sec
- Burn back Time: 0 - 0.25 sec
- Gas Post-flow Time: 0.2 - 3 sec
WF-4 Wire Feeder
- Input Voltage 2 V
- Frequency I Phase 60 Hz I 1 Ph
- Input Power 120 W
- Wire Size 0.6 - 1.6 mm
- Wire Feed Speed 0.5 - 20 m/min
- Weight 8 Kg
Standard Accessories
- 1 set MIG Torch #500(3 m Long) + 5 pcs Contact Tip
- 1 pc Earth Clamp+ Cable (50 mm2 ) (3 m Long)
- 1 pc C02 Regulator with Heater (220 V)
- 1 pc Air Hose (3 m Long)
