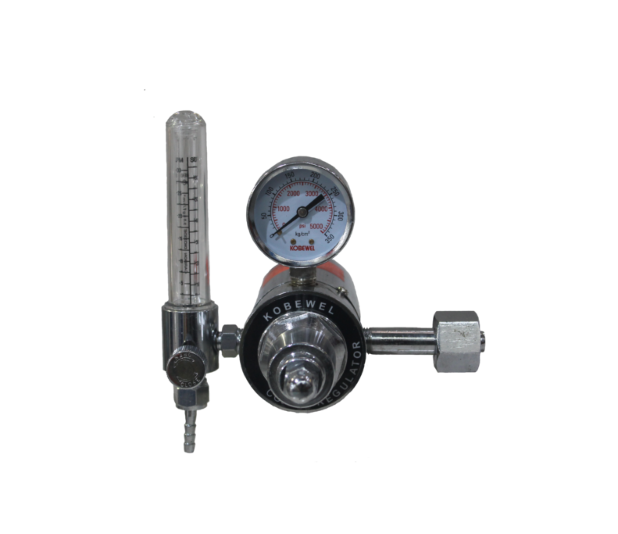

Kobewel Argon Regulator KR-10AR
Feature
- It is a regulator with flow-meter for special application in TIG and MIG welding. It is suitable for manufactory, construction and installation industry.
- Body is forged from class A brass bar and housing cap press-formed from steel plate. Both of them are chrome-plated.
- Preset outlet pressure of regulator is 3.5bar.
- Flow-meter can provide precise reading of outlet flow rate under pressure at 3.5bar. It can achieve precise control over flow rate between 0-25L/min.
- It is suitable for gases such as Ar, CO2, He, and mixed gas.
- Flow-meter employs shatter proof PC tube. It can be observed from all direction and won't crack under sudden crash.
- External relief valve ensures safety in use
- Inlet is protected by a sintered bronze filter.
Specification
| Model | KR-10AR |
| Gas Type | Argon |
| Flow | 0-25 |
| Max Inlet Pressure (bar) | 250 |
| Working Pressure (Bar) | 3.5 |
| Connection Type |
CGA-580 |
