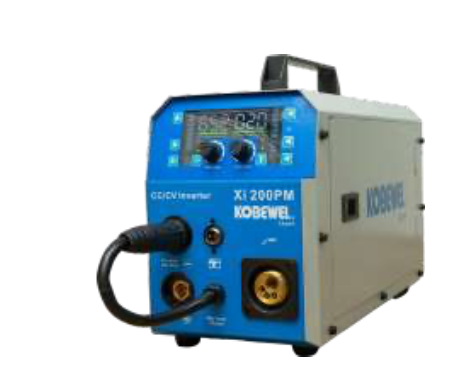

Kobewel 200A Multi-Process Inverter Welding Machine Xi 200PM
Specification
- Welding range 30 - 200 A
- Load voltage : 15.5 - 24.0 V
- Open circuit voltage : 66 V
- Welding current duty cycle 40°C : 40%
- Input power: 7.4 KVA
- Input Phase 1 Ph
- Main voltage, Tolerance 220 V, ±15 %
- Frequency 50/60 Hz
- Weldable Steel wire: 0.8 - 1.0 mm
- Machine Spool wire Max. Capacity: 5kg
- Weldable Aluminum wire :1.0 - 1.2 mm
- Weldable Flux-cored wire: 1.0 mm
- Power factor: 0.76
- Efficiency: 0.85
- Index protection: IP 21S
- Insulation class: B
- Cooling type: F
- Dimension: (L x W x H) :420 x 190 x 250 mm
- Weight: 14kg
Standard Accessories:
- Air-cooled (24KD) MIG Torch 3M
- Ground clamp with welding cable
- Air hose with 2 pcs hose clamp
- Extra Teflon Liner 1.0 - 1.2 mm²
- 1 pc Cable Connector 35-50mm2
- Drive Roller V-Groove (0.8 & 1.0)
- Drive Roller Knurled Groove (0.8 / 1.0)
- Drive Roller U-Groove (1.0 / 1.2)
- 3 pcs Contact TIP
- Welding Helmet 35F-KDH
- CO2 Regulator with Heater KR-12CO
- 1 pc Coupler Socket Hose 20SF
Optional:
- MIG Spool Gun KL-SG01
Complete Kit
- Ground clamp w/ welding cable
- Air hose w/ 2pcs hose clamp
- Welding Helmet 35F-KDH
- 1 pc Coupler Socket Hose 20SF
- MIG / FCAW Function:
- Air-cooled MIG Torch 3M length
- CO2 Regulator with Heater KR-12CO
- TIG Function:
- Air-cooled TIG Torch KL-25009
- Thoriated Tungsten Electrode 1.6 mm KTE-1016P
- Argon Regulator KR-10AR
- Stick/MMA Function:
- Euro type Quick Connector 35-50 mm²
- Electrode Holder KEH-300A
- 2 m Welding Cable 35mm² KWC-D35CM
