Innova DC Inverter Welding Machine
Feature
- Saving Energy
- overload protection
- Easy moving work anywhere
- Mainly for industrial use
- High Quality
- High Duty Cycle
Specification

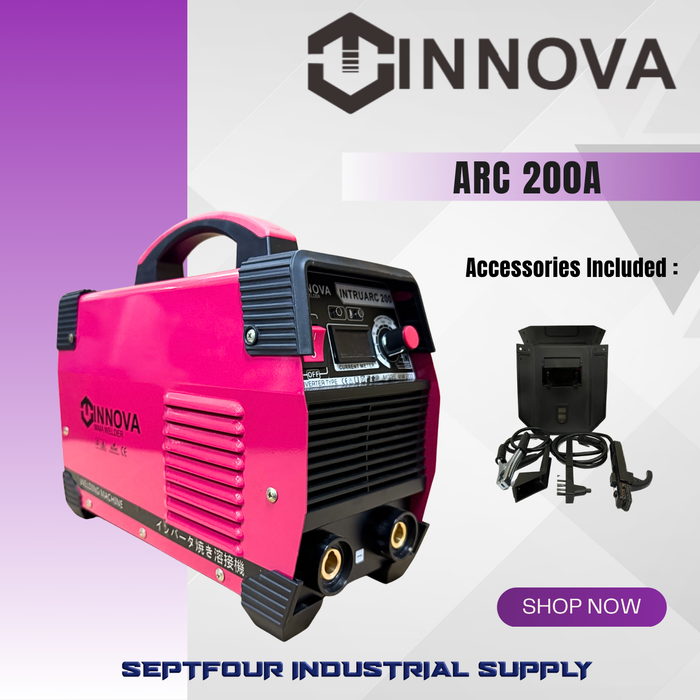

NIW-200
- Type: ARC 200A
- Input Voltage : 220V
- Frequency: 50/60 Hz
- Phase :1
- Rated Input Current : 32A
- No. Load Voltage: 65V
- Output Current Range: 35-200
- Rated Output Range 28V
- Duty Cycle: 80%
- Efficiency: 80%
- Insulation Grade: F

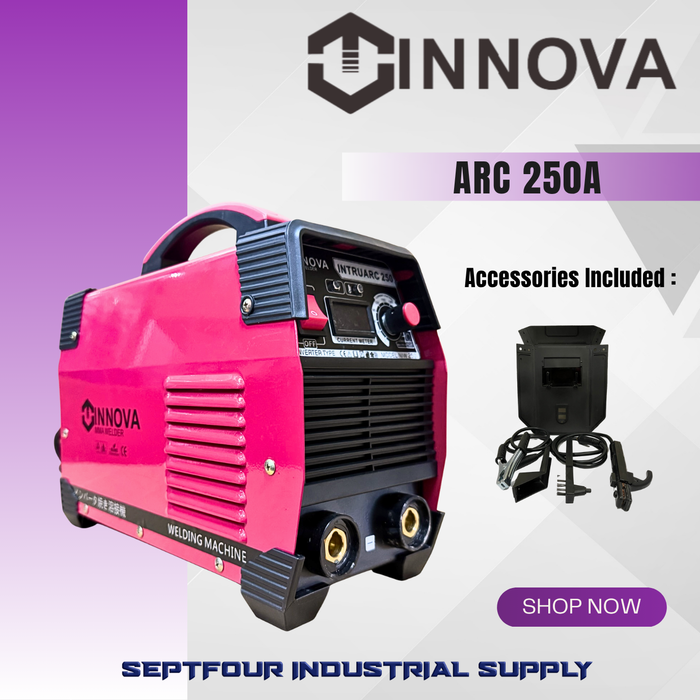

NIW-250
- Type: ARC 250A
- Input Voltage : 220V
- Frequency: 50/60 Hz
- Phase :1
- Rated Input Current : 42.5A
- No. Load Voltage: 65V
- Output Current Range: 35-250
- Rated Output Range : 30V
- Duty Cycle: 80%
- Efficiency: 80%
- Insulation Grade: F

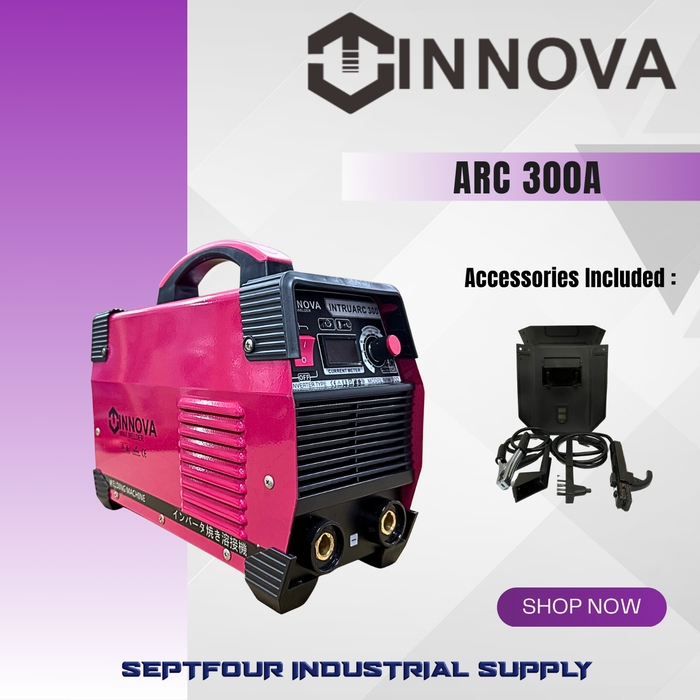

NIW-300
- Type: ARC 300A
- Input Voltage : 220V
- Frequency: 50/60 Hz
- Phase :1
- Rated Input Current : 54.5A
- No. Load Voltage: 65V
- Output Current Range: 35-300
- Rated Output Range : 32V
- Duty Cycle: 80%
- Efficiency: 80%
- Insulation Grade: F

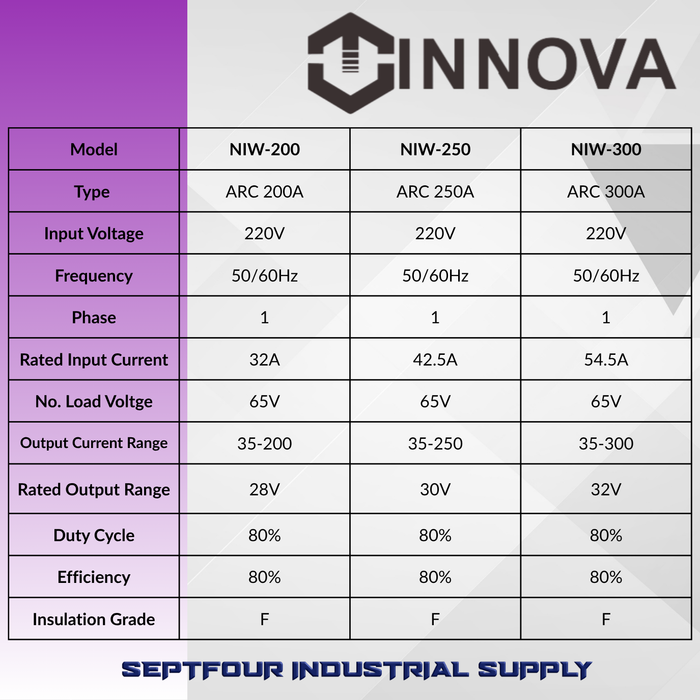

| Model | NIW-200 | NIW-250 | NIW-300 |
|---|---|---|---|
| Type | ARC 200A | ARC 250A | ARC 300A |
| Input Voltage | 220V | 220V | 220V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Phase | 1 | 1 | 1 |
| Rated Input Current | 32A | 42.5A | 54.5A |
| No. Load Voltge | 65V | 65V | 65V |
| Output Current Range | 35-200 | 35-250 | 35-300 |
| Rated Output Range | 28V | 30V | 32V |
| Duty Cycle | 80% | 80% | 80% |
| Efficiency | 80% | 80% | 80% |
| Insulation Grade | F | F | F |
