Goulds Self Priming Centrifugal Pumps
FEATURES:
- Self-Priming Design
- Fully Serviceable
- FDA Compliant Impeller
- Corrosion Resistant
- Powered for Continuous Operation
- Maximum water temperature: 140° F (60° C)
APPLICATION:
- Lawn Sprinkling, Irrigation, Air Conditioning Systems, Heat Pumps, Water Transfer, and De-Watering.
Specification:
2HP- GT-20
- Model no. GT20
- Power: 2HP
- Size: 1.5”x1.5”NPT
- RPM: 3560 rpm
- Cast iron casing (ci)
- Noryl plastic impeller
- Phase : 1
- Voltage: 115/230v
- Hz: 60
3HP- GT-30
- Model no. GT30
- Power: 3HP
- Size: 1.5”x1.5”NPT
- RPM: 3560 rpm
- Cast iron casing (ci)
- Noryl plastic impeller
- Phase : 1
- Voltage: 115/230v
- Hz: 60
3HP-GT303
- Model no. GT303
- Power: 3HP
- Size: 1.5”x1.5”NPT
- RPM: 3560 rpm
- Cast iron casing (ci)
- Noryl plastic impeller
- Phase : 3
- Voltage: 230/460v
- Hz: 60

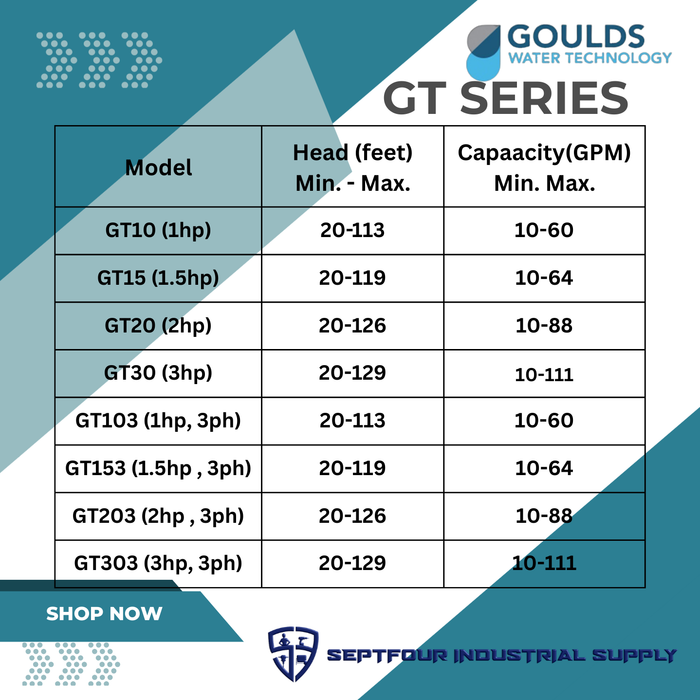

| Model | Head (feet) Min.- Max. |
Capacity (Gpm) Min.- Max |
|---|---|---|
| GT10 (1hp) | 20-113 | 10-60 |
| GT15 (1.5hp) | 20-119 | 10-64 |
| GT20 (2hp) | 20-126 | 10-88 |
| GT30(3hp0 | 20-129 | 10-111 |
| GT103 (1hp, 3ph) | 20-113 | 10-60 |
| GT153 (1.5hp, 3ph) | 20-119 | 10-64 |
| GT203 (2hp , 3hp) | 20-126 | 10-88 |
| GT303 (3hp , 3ph) | 20-129 | 10-111 |
