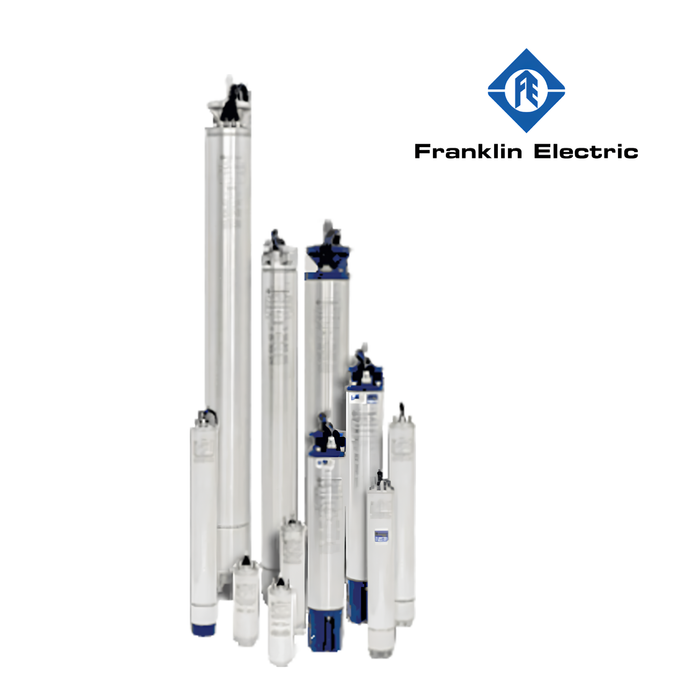

Franklin 4" High Thrust Submersible Motors (1 Lead Included)
Specification
| Model | kw | HP | Volts | Hz | SF | Lead | STK | Thrust | WT | Price Group |
|---|---|---|---|---|---|---|---|---|---|---|
| Single Phase | ||||||||||
| 2247022604G |
2.2 |
3.0 |
230 |
60 |
1.15 |
YES |
YES |
900 |
41 |
4" HT |
| 2247038602G |
3.7 |
5.0 |
230 |
60 |
1.15 |
YES |
YES |
1,500 |
71 |
4" HT |
| Three Phase | ||||||||||
| 2343162604G |
2.2 |
3.0 |
230 |
60 |
1.15 |
YES |
YES |
900 |
41 |
4" HT |
| 2347178602G |
3.7 |
5.0 |
230 |
60 |
1.15 |
YES |
YES |
1,500 |
56 |
4" HT |
| 2347188602G |
5.5 |
7.5 |
230 |
60 |
1.15 |
YES |
YES |
1,500 |
71 |
4" HT |
| 2343462604G |
2.2 |
3.0 |
380 |
60 |
1.15 |
YES |
YES |
900 |
41 |
4" HT |
| 2347478602G |
3.7 |
5.0 |
380 |
60 |
1.15 |
YES |
YES |
1,500 |
56 |
4" HT |
| 2347488602G |
5.5 |
7.5 |
380 |
60 |
1.15 |
YES |
YES |
1,500 |
71 |
4" HT |
| 2347498602G |
7.5 |
10.0 |
380 |
60 |
1.15 |
YES |
YES |
1,500 |
77 |
4" HT |
| 2343268602G |
2.2 |
3.0 |
460/380 |
60/50 |
1.15/1.0 |
YES |
|
1,500 |
44 |
4" HT |
| 2347278602G |
3.7 |
5.0 |
460/380 |
60/50 |
1.15/1.0 |
YES |
|
1,500 |
56 |
4" HT |
| 2347288602G |
5.5 |
7.5 |
460/380 |
60/50 |
1.15/1.0 |
YES |
|
1,500 |
71 |
4" HT |
| 2347298602G |
7.5 |
10.0 |
460/380 |
60/50 |
1.15/1.0 |
YES |
|
1,500 |
77 |
4" HT |
