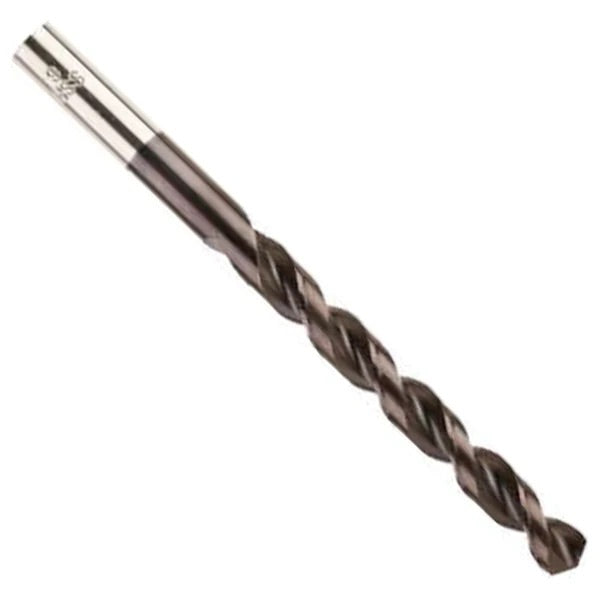

Diager HSS-G3 Multi-Layer Coating Drill Bit
Feature
- Fully ground drill HSS.
- Multi-coated slides Titanium, Aluminum, Nickel.
- 135° tip angle.
- Split point.
- Flute type S.
- Diameter tolerance h8
Benefits
- Starting precision.
- Multiple coating that acts as a thermal barrier against heating and allows a longer life.
- The coating reduces friction, facilitates dust removal and increases the cutting speed.
- The type S flute makes it possible to remove medium and long chips.
Application:
- Non-alloy Steel
- Cast Iron, spheroidal
- Alloy Steel
- Cast Iron
Specification
| Model | Ø x Length (mm) |
|---|---|
| 702D01 | 1.0 x 34 |
| 702D02 | 2.0 x 49 |
| 702D02.5 | 2.5 x 57 |
| 702D03 | 3.0 x 65 |
| 702D03.2 | 3.2 x 65 |
| 702D03.5 | 3.5 x 70 |
| 702D04 | 4.0 x 75 |
| 702D04.5 | 4.5 x 80 |
| 702D05 | 5.0 x 86 |
| 702D05.2 | 5.2 x 86 |
| 702D05.5 | 5.5 x 93 |
| 702D06 | 6.0 x 93 |
| 702D06.5 | 6.5 x 101 |
| 702D07 | 7.0 x 109 |
| 702D08 | 8.0x 177 |
| 702D08.5 | 8.5 x 117 |
| 702D09 | 9.0 x 125 |
| 702D10 | 10.0 x 133 |
| 702D11 | 11.0 x142 |
| 702D12 | 12.0 x 151 |
| 702D13 | 13.0 x 151 |
| 702D14 | 14.0 x 160 |
| 702D16 | 16.0 x 178 |
