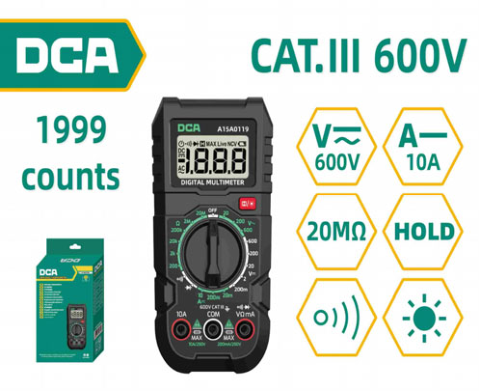

DCA Digital multimeter 1999 counts — A15A0119
Specifications
| Brand | DCA |
|---|---|
| Model | A15A0119 |
| Size / rating | 1999 counts |
| Sales unit | Pcs |
| Quantity per box | Not specified |
| Quantity per carton | 60 |
| Barcode | 6942540952385 |
| Maximum display | 1999 |
| Safety regulations grade | CAT.Ⅲ 600V |
| Measurement mode | Manual range |
| DC voltage | 600V±（1.0%+5） |
| AC voltage | 600V±（1.0%+5） |
| DC current | 10A±（1.0%+5） |
| AC current | / |
| Resistance | 20MΩ±（1.2%+5） |
| Capacitance | / |
| Frequency | / |
| Temperature | / |
| Duty cycle | / |
| NCV | / |
| Live | / |
| Diode measurement | √ |
| Transistor measurement | / |
| Ture | √ |
| Data-hold | √ |
| Backlight | √ |
| Flashlight illumination | / |
| Auto power-off | √ |
| Power supply | 2x1.5V AAA |
| Product size | 125×65×35mm |
| Weight | 107g（Batteries not included） |
| Packing quantity | 1/60 |
Manufacturer catalog details
Refer to model A15A0119 in the catalog excerpt below.
View full-size catalog details
Specifications may differ from country to country. Packaging is subject to change.
