For usage of industry, agriculture, mine, building construction, environmental protection. Fit for carrying slurry, mortar, daily sanitary wastewater, and sewage containing flocks, papers, mud and sand and other solid particles. Also fit for dredging.

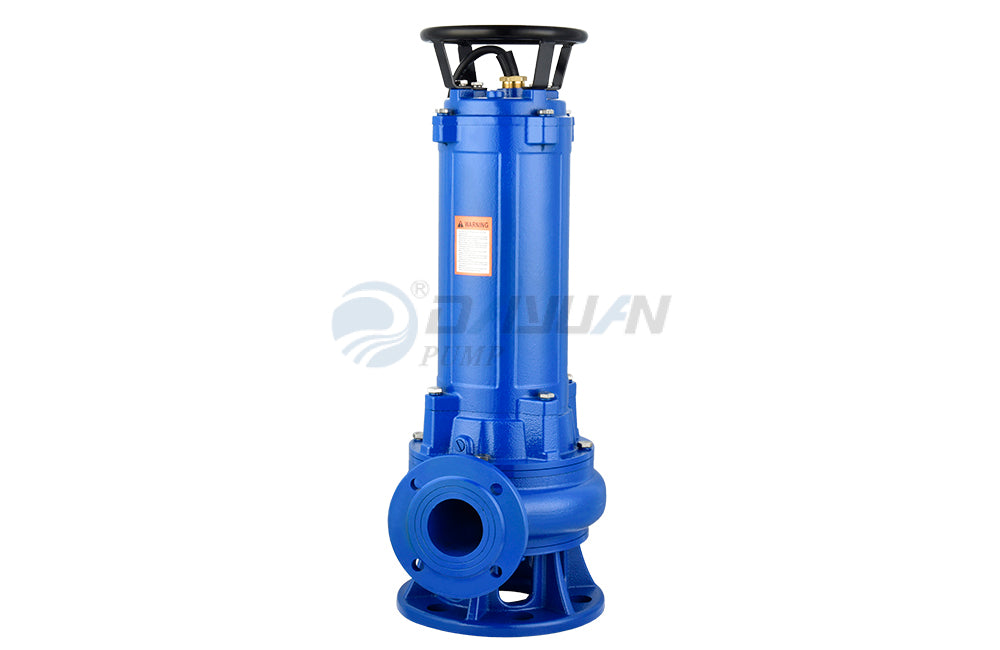

Dayuan Submersible Sewage Pump
OPERATING LIMITS
- Trans medium's PH: 4-10
- Fluid temperature limit: <40°C
- Max ambient temperature: <40°C
- Operating depth: 5m
STRUCTURAL CHARACTERISTICS
- Insulation Class: B
- Protection Class: IP68
MATERIAL
- Pump body: Cast iron
- Impeller: Cast iron
- Motor shaft: Stainless steel
- Mechanical seal: Ceramic-Graphite
| Submersible Sewage Pump | ||||||
|---|---|---|---|---|---|---|
|
Types |
Discharge |
Max. Flow (m3/h) |
Max. Head (m) |
Max. Solid Dia. |
Power |
Voltage |
| WQD9-18-2.2QG |
2”/50mm |
22 |
24 |
20m |
2.2KW |
380 |
|
WQ9-22-2.2QG |
2”/50mm |
35 |
27 |
20m |
2.2KW |
380 |
|
WQ43-13-13C |
3”/80mm |
43 |
13 |
30m |
3KW |
380 |
