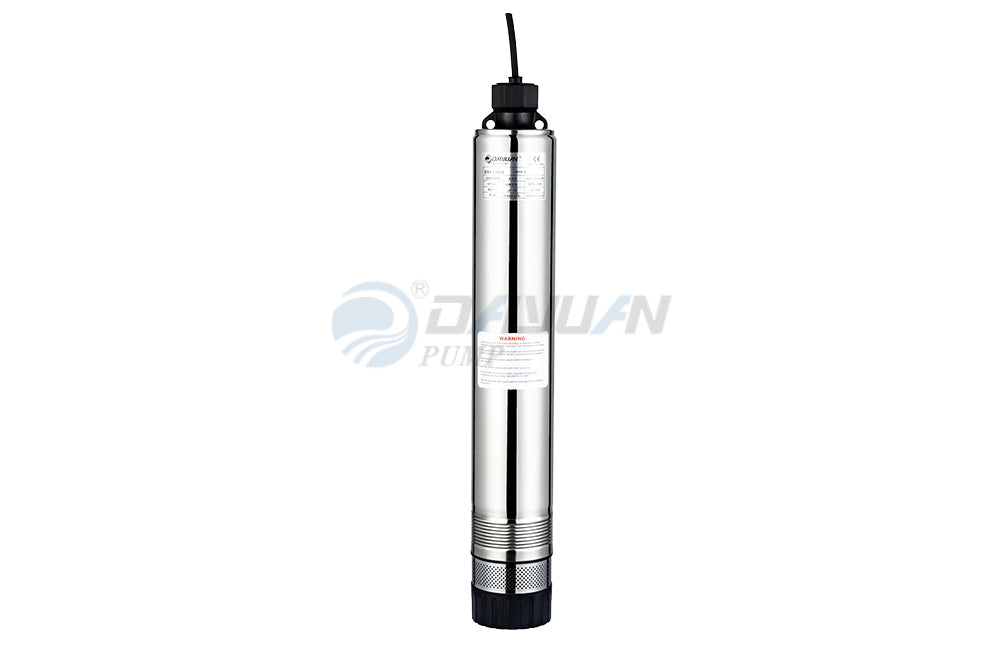

Dayuan Submersible Deep Well Pump
Features:
Application Area
- For water supply from wells or reservoirs.
- For Domestic use, for civil and industrial applications.
- For garden use and irrigation
Operating Limits
- Maximum fluid temperature up to +40°C
- Maximum sand content 0.15%
- Maximum immersion: 50m
- Minimum well diameter: 4"
Motor and Pump
- Rewindable motor
- Pumps are designed by casing stressed
- Nema dimension standard
Specification:
| Model | Motor Power | Gross Weight | Size | |
|---|---|---|---|---|
| Single Phase 220-240V/60Hz | KW | HP | Kg | cm |
| DS3.5-6 | 0.45 | 0.6 | 10 | 72 x 14 x 18 |
| DS5.8-4 | 0.37 | 0.5 | 10 | 70 x 14 x 18 |
| DS5.8-5 | 0.6 | 0.8 | 11 | 72 x 14 x 18 |
