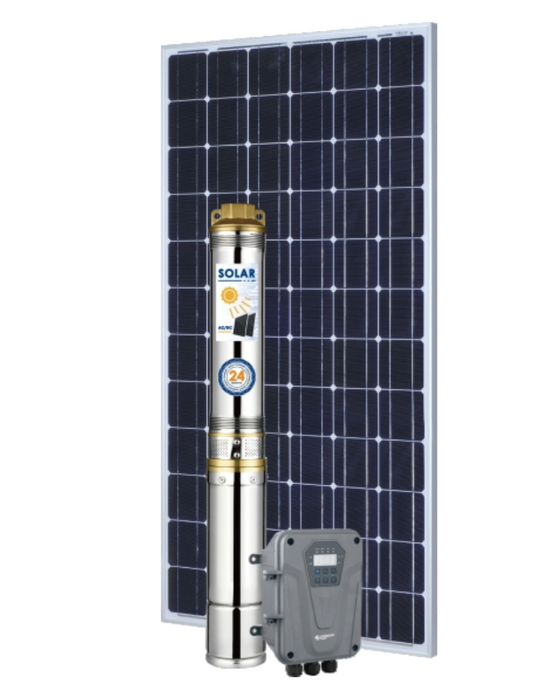

Dayuan Deep Well Solar Pump (Unit & Control Box Only)

Dayuan Deep Well Solar Pump (Unit & Control Box Only)

by Dayuan
₱19,500.00
Model

Dayuan Deep Well Solar Pump (Unit & Control Box Only)

Specification

Model Power (W) Power (HP) Max. Head Max Flow Voltage (V) Best MPPT Voltage (DC) Impeller Stage Outlet Diameter
3SWC4-42-24-300/24V 300 0.40 42 4m3/h 24 24-36 6 1"/1 ¼”
3SWC4-76-48-500/48V 500 0.7 76 4m3/h 48 48-72 9 1"/1 ¼”
3SWC4-101-48-750/48V 750 1 101 4m3/h 48 48-72 12 1"/1 ¼”
3SWC4-140-96-1500/96V 1500 2 131 4m3/h 96 96-144 16 1"/1 ¼”
4SWC5-54-48-500/48V 500 0.7 54 5m3/h 48 48-72 4 1 ¼”
4SWC5-81-48-750/48V 750 1 81 5m3/h 48 48-72 6 1 ¼”
4SWC5-121-72-1100/72V 1100 1.5 121 5m3/h 72 72-108 9 1 ¼”
4SWC5-164-96-1500/96V 1500 2 164 4m3/h 96 96-164 12 1 ¼”



Note: Unit & Control Box Only
