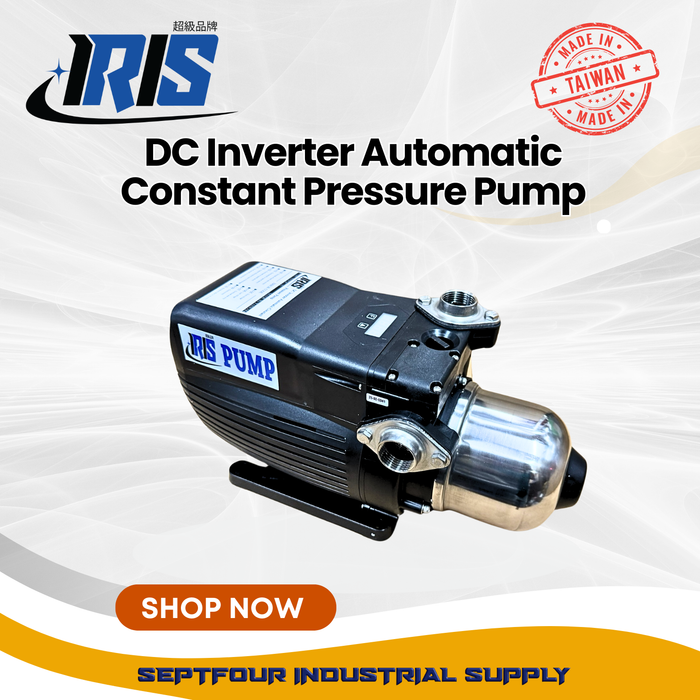

IRIS DC Inverter Automatic Constant Pressure Pump - Made in Taiwan
Features:

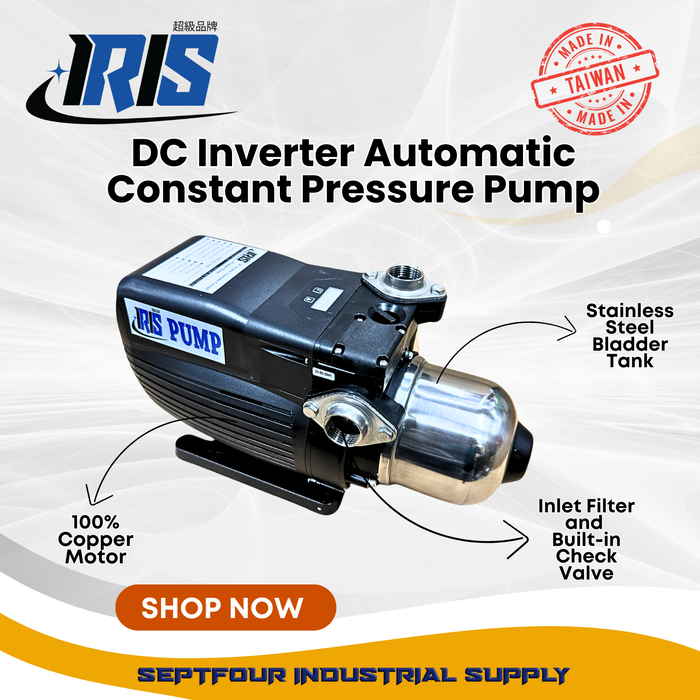

- DC inverter series combines DC permanent magnet brushless motor, intelli-
gent controller, high efficiency frequency converter, stainless steel pressure tank, pressure sensor, water flow sensor, check valve control and other precision components. - Motor applies DC permanent magnet brushless motor with efficiency up to 93% in line with IE4 standards.
- The frequency converter uses the latest technology MCU high-efficiency component and the internal setting PFC( power factor) reaches more than 98%, which genuinely saves energy.
- Pressure sensing combined with water flow "Hall control" component in one
with high accuracy and precision. - The exquisite appearance does not rust at the contact with the water, eliminating the worry of embroidery water.
- Touchable display panel allows the ideal pressure to be adjusted arbitrarily, which eliminates worries of burst in old house pipes.
- Low noise, quiet and not disturb sleep, multiple protection, display fault information when it has problems and solve the problems immediately
- Suitable for general villas, and for adding pressure on the top floor of the Mansion, which provides stable pressure and water current.
Applicable condition:
- Ambient temperature: 2°C ~ 45°C
- Liquid Temperature : 5 ° C ~ 9 5 ° C (Hot water is applicable)
- Liquid clean water only, without impurities
Pressure setting:
- 1/2HP 1-2.2KG
- 1HP 1-3K

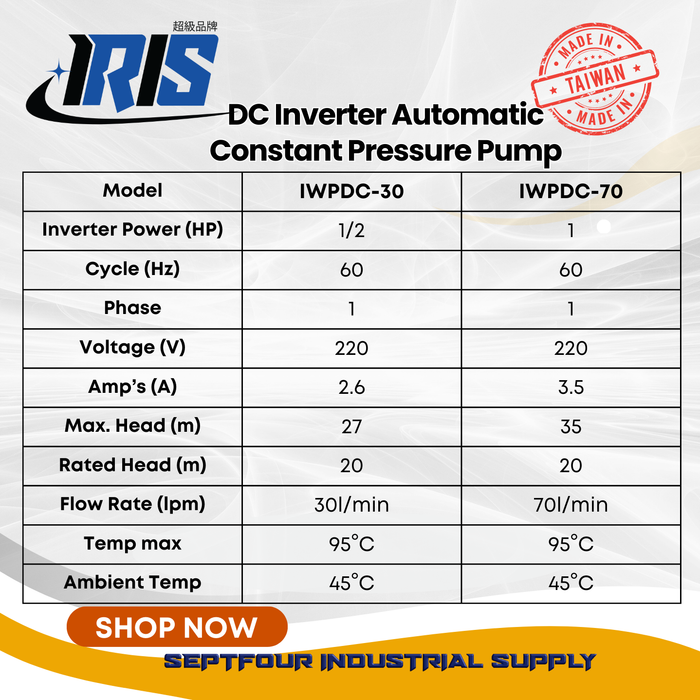

Specification:
| Model | HP | Cycle (Hz) | Phase | Voltage (V) | AMP (A) | Head | Rated (H) | Rated (l) | Temp Max | Ambient Temp | Input/Output |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IWPDC-30 | 1/2 HP | 60 | 1 | 220 | 2.6 | 2.7kg | 2Kg | 30l/min | 95°C | 45°C | NPT 1" |
| IWPDC-70 | 1HP | 60 | 1 | 220 | 3.5 | 3.5kg | 2Kg | 70l/min | 95°C | 45°C | NPT 1" |
