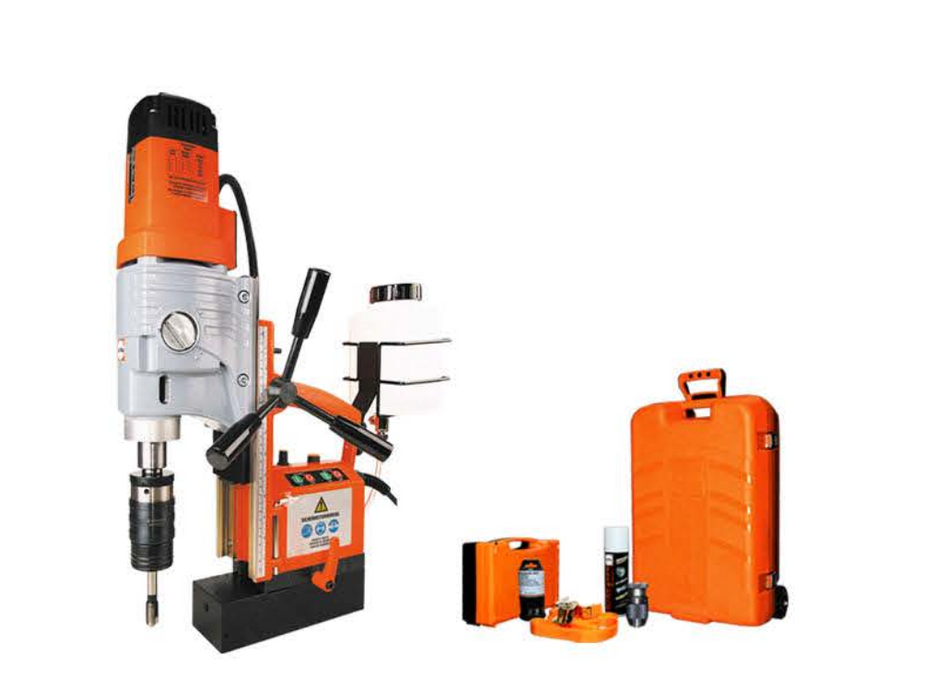

ALAlfra 1800W Magnetic Drill Press
Specification
- Model: 60RL-E
- Power Consumption:1,800 W
- Input Voltage 230 V/ 50 / 60 Hz
- Speed Gearbox : 50-110 / 75-175 / 105 rpm
245 I 165-385 rpm - Max Diameter of Cutter : 80mm
- Max Cutting Depth: 50mm
- Tapping : M30
- Twist Drills Diameter : with chuck 1.0-16.0 mm
- with MT 3 DIN345 upto 32 mm
- Arbor: MT3
- Magnetic Adhesion : 4,200 N/ 20,000 N
- Stroke: 190 mm
- Height Adjustment: 60 mm
- Magnet Foot Size: 80 x 230 mm
30 ° Adjustable right and Left,
10 mm-front and rear - Weight 22 Kg
Inclusion:
- Carrying Case
- 18025 Tool Holder MT 3
- Coolant Equipment
- Drilling Spray
- Quick-re lease Chuck 1 to 16 mm, MT 3
- Chip Hook
- Safety Belt
- Operating Manual
