Evergush Auto Booster Pump V- Series
Features
- Auto boost water pressure when water is consumed; stop running automatically when water is not consumed
- Pre-pressure one-piece forming diaphragm pressure tank with good appearance and corrosive resistant.
- Install overload protector in motor's circuit and thermal shutoff device on pump front cover protect motor from burnout due to abnormal conditions.
- Equipped with Made in Japan Pressure Switch
- Equipped with thermal protector
Applications
- Water supply for residential and commercial applications.
- Water pressure boosting for barber shops, restaurants, sprinkle systems, washing machines, apartments, etc.
Operating Conditions
- Ambient temperature: 0~+40°C
- Liquid temperature: +4°C~+50°C
- Before using the pump, be sure the inlet pressure setting is lower than on setting of pressure switch.
Specification
| Model | Frequency (Hz) | Power (HP) | PH (ø) | Voltage (V) | Inlet (in.) | Outlet (in.) | Pressure Setting (On/Off) | Max. Head (m) | Max. Flow (L/min.) | Net Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|

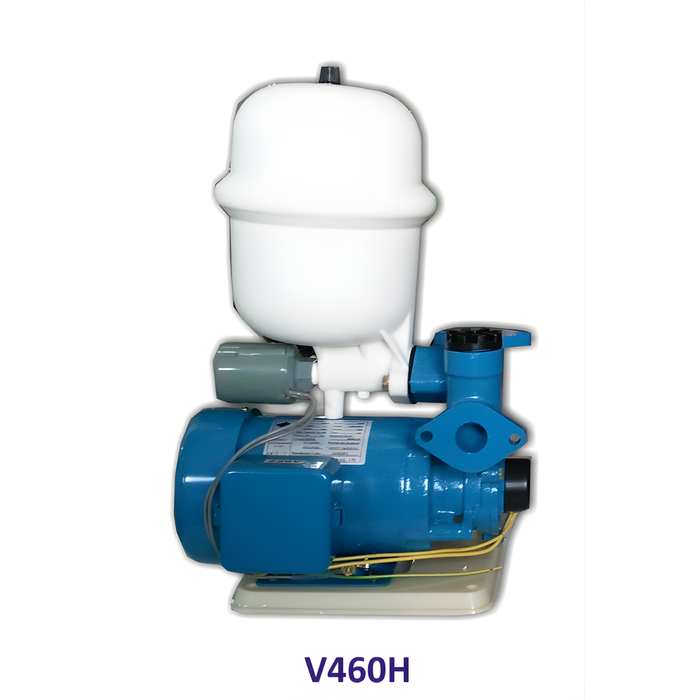

| V460H | 60 | 1/2 | 1 | 220 | 1" | 1" | 2.0 / 3.2 | 43 | 45 | 11.3 |

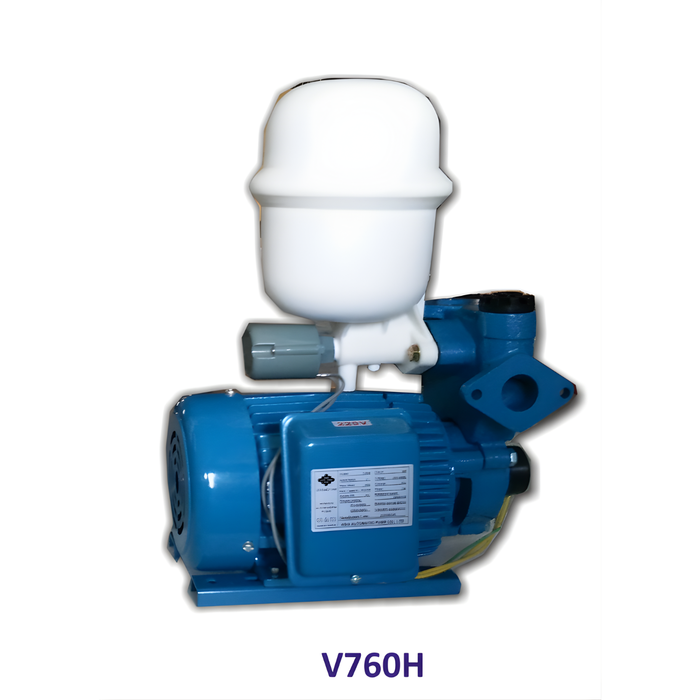

| V760H | 60 | 1 | 1 | 220 | 1" | 1" | 2.0 / 3.2 | 45 | 70 | 21.4 |
