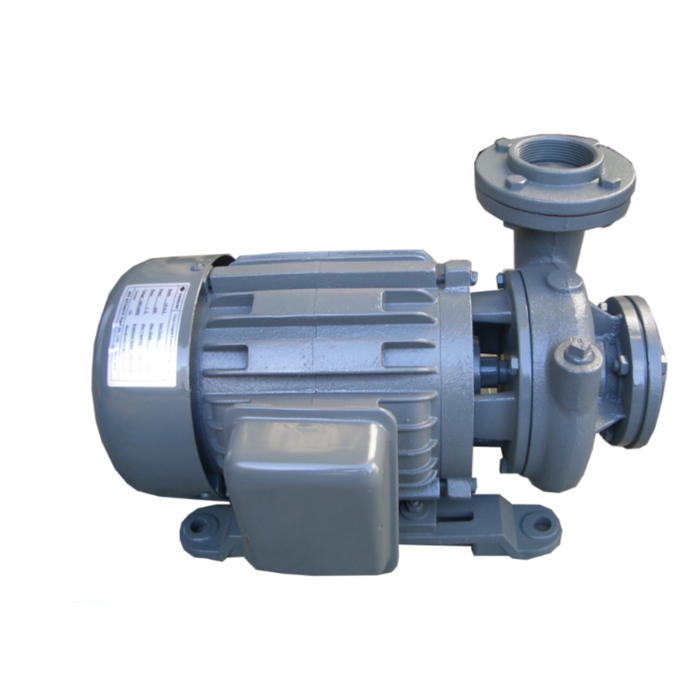

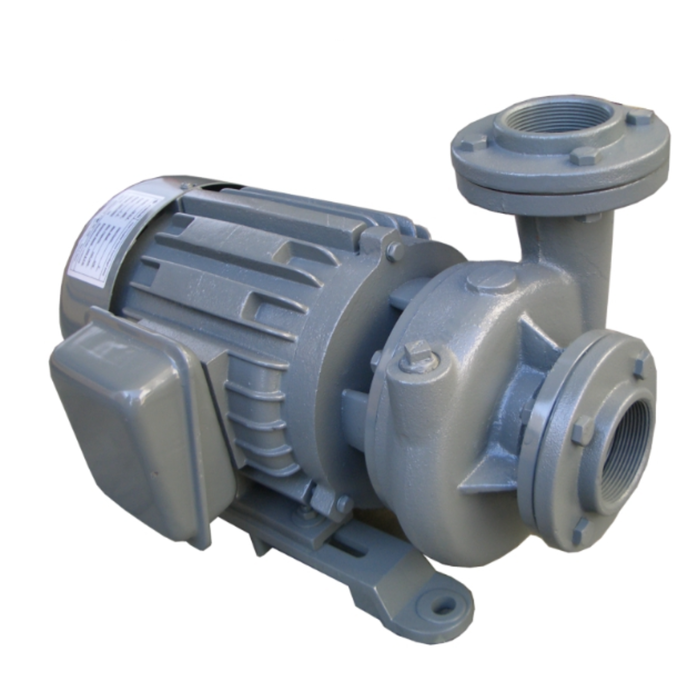

Evergush Close-Coupled Vortex Centrifugal Pump - Industrial Series
Features
- The motor and pump are connected with the same shaft, for eliminating fluctuation and reducing installation and maintenance cost.
- Special volute channel design for silent operation and high efficiency.
- Compact & robust structure for saving space and easy installation.
Application
- Heating and cooling water circulation.
- Broad range of industrial applications.
- Open loop and close loop water circuit systems.
- Water supply and disposal for household.
- Process water for paper mill, brewery, refinery.
- Boiler feed, washing and cleaning system.
- Water supply and disposal for households.
Operating conditions
- Ambient temperature: Up to 40 °C
- Liquid temperature: Up to 60°C
- For clean liquids, without solid, filamentary or abrasive matter
- Working pressure: Max. 10 bar
| Model | Power | Phase | Voltage | Suction & Discharge Dia. | Max. Head | Max. Capacity |
|---|---|---|---|---|---|---|
| CP-21.5 | 2HP | 1Ø | 220V/60Hz | 2" | 26m | 300L/min. |
| CP-22.2 | 3HP | 1Ø | 220V/60Hz | 2 1/2" | 23m | 550L/min. |
| CP80-23.7H | 5HP | 3Ø | 220V/60Hz | 3" | 25m | 850L/min. |
| CP80-25.5 | 7.5HP | 3Ø | 220V/60Hz | 3" | 39m | 1050L/min. |
| CP100-27.5 | 10HP | 3Ø | 220V/60Hz | 3" | 56m | 620L/min. |
| CP100-211 | 15HP | 3Ø | 220V/60Hz | 3" | 76m | 650L/min. |
