Evergush Submersible Dredging Sewage Pumps EFD Series
Features
- Superior Abrasion resistant double Mechanical seal effect and reduce abrasion from slurry.
- Equipped with stainless steel(SUS316)agitator to create powerful stirring and pumping action for slurry.
Applications
- Drainage slurry from construction site, factories..etc.
- Civil or tunnel engineering.Dewatering fluid containing solid sediment.

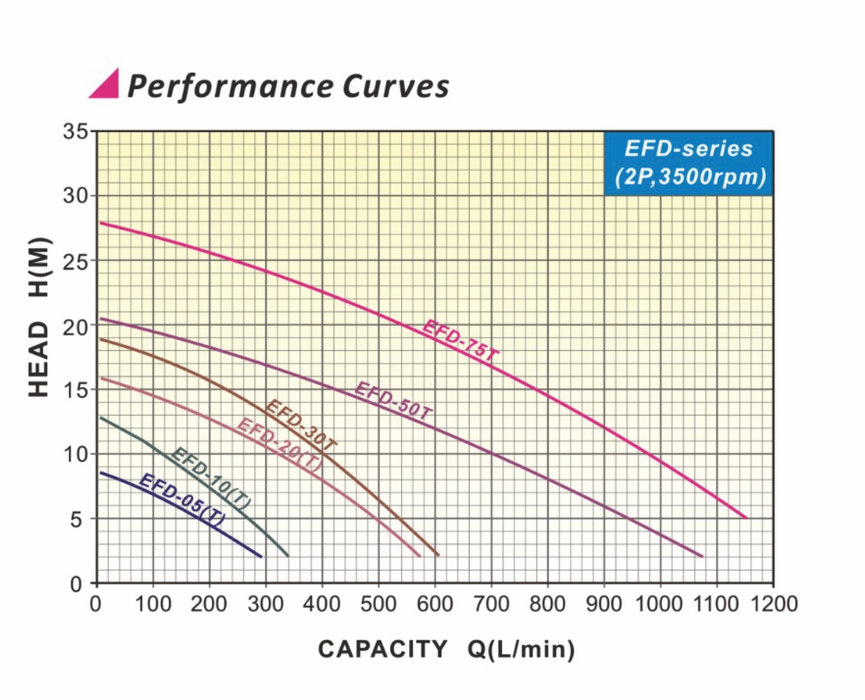

Specification & Dimension
- 60Hz
| Model | EFD-50T | EFD-75T |
|---|---|---|
| Power (KW / HP) | 3.7 kW / 5 HP | 5.5 kW / 7.5 HP |
| Discharge (Inch) | 3" (4") | 3" (4") |
| Phase | 3 | 3 |
| Rated Head (M) | 10 ~ 13 | 15 ~ 20 |
| Rated Capacity (LPM) | 700 ~ 540 | 780 ~ 540 |
| Max. Head (M) | 20.5 | 28 |
| Max. Capacity (LPM) | 1150 | 1300 |
| Cable Length (M) | 5 | 5 |
| Net Weight (KG) | 55 | 61 |
| Solid Passage (MM) | 50 | 50 |
| Dimension (mm) | ||
| L | 459 | 459 |
| L1 | 256 | 256 |
| W | 227 | 227 |
| H | 638 | 678 |
| H1 | 471 | 511 |
| H2 | 160 | 160 |
| H3 | 220 | 220 |
