Showfou Submersible Pump Parts & Accessories
Specification:
- All original parts of Showfou Submersible Pump
- Kindly check your model accordingly. No Returning of item.
- Parts is intended for Showfou Brand only. For other brands, we cannot assure compatibility.
- Made in Taiwan

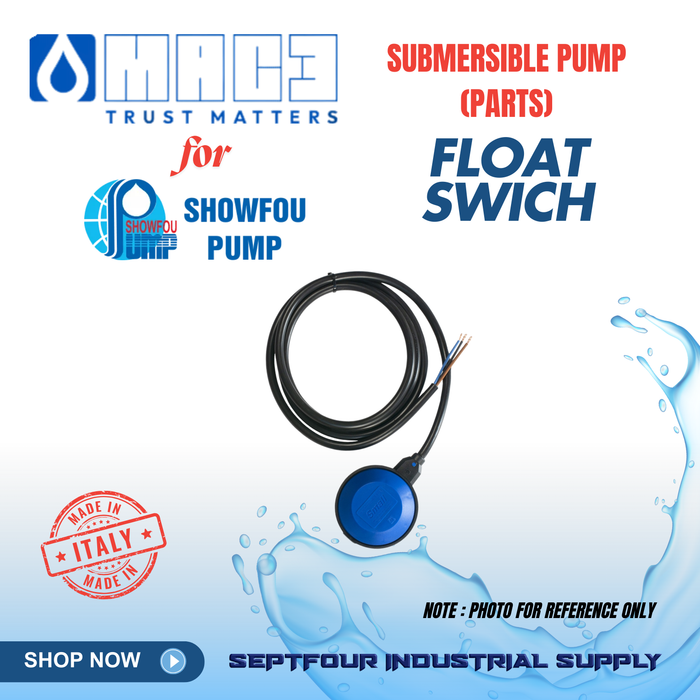

For Float Switch
-
Brand : Mac3 - Made in Italy
-
Parts -- Floating Switch
-
-
Kindly check your model accordingly.
-
Parts is intended for Showfou Brand only. For other brands, we cannot assure compatibility.
Model : SMALL
PUMP MANUFACTURERS' TOP CHOICE. (SUITABLE FOR CLEAR AND WASTE WATERS).
Due to its compact size and high technical specifications, MAC3’s SMALL model is widely adopted by manufacturers of drainage pumps as the primary choice for equipping newly produced pumps. Its success is primarily due to the use of high-rated microswitches, including 20(8)A 250V or multi-voltage 10(6)A 400V-20(8)A 250V, in addition to its flexibility for installation, even in tight spaces.
This model is also suitable for installation in residential drainage wells, requiring a minimum distance of just 20 cm from the connection point.
Designed and made in Italy.
TECHNICAL SPECIFICATIONS
- Microswitch Type : 20(8)A 250 V~, multitension 20(8)A 250 V~/ 10(6)A 400 V~
- Max fluid temperature : +50°
- Dimensions : 82 x 111 x 48 mm
- Weight (without cable) : 113 g (without cable)
- Switching angle : ±45º
- Isolation Grade : IP68
- Nominal pressure : 2 bar
- Cable lengths : 2m
- Body Material : Non-toxic Polypropylene (PP)
-
Notes : Some Pictures are for reference only.

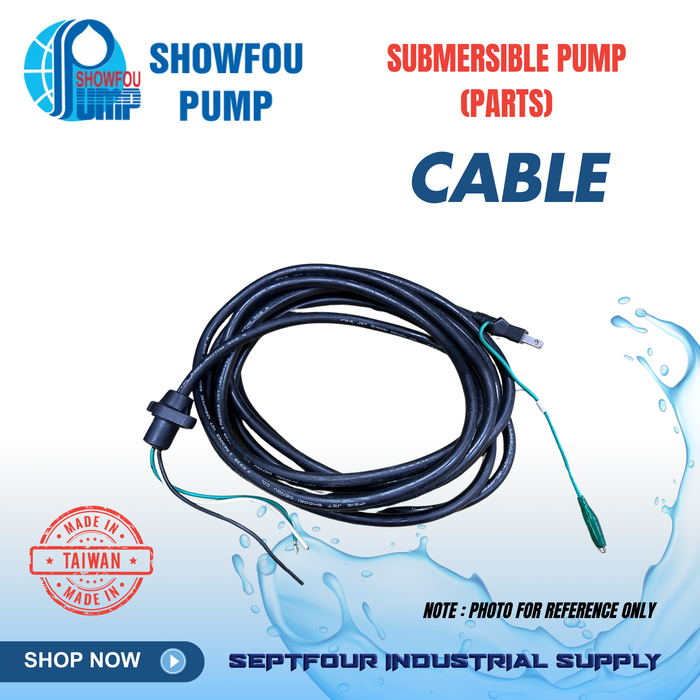

| Cable |
|---|
| Cable For SF-112AD; SH/SS/SST-112D |
| Cable For GP-232/332/532 |
| Cable For SH-332HD/532D; SS-332D/532D |
| Cable For GF-100; GF/GV-200/370/680 |
| Cable For SH/SS-1532 |
| Cable For KT-212N; SH-212HD, SH-312HD; KS-312D; SF/SS/SST-212D/312D |
| Cable For SH/SS-732/1032/732D/1032D; KS-732 |
| Cable For SV-732/1032 |
| Cable For SF/SS-0512N; SC-0512/112A; SF-0512D |
| Cable For SSA-0512N; SV/SVA-0512 |
| Cable For SV-232/332/532 |

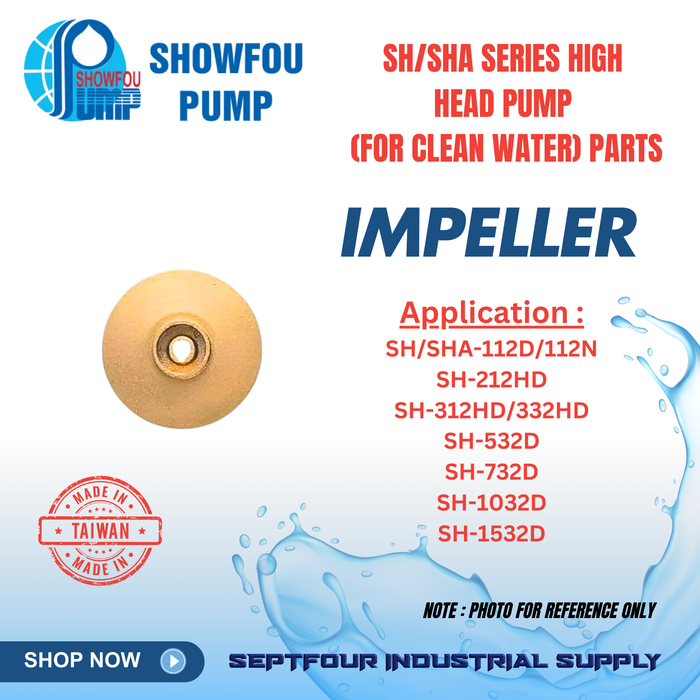

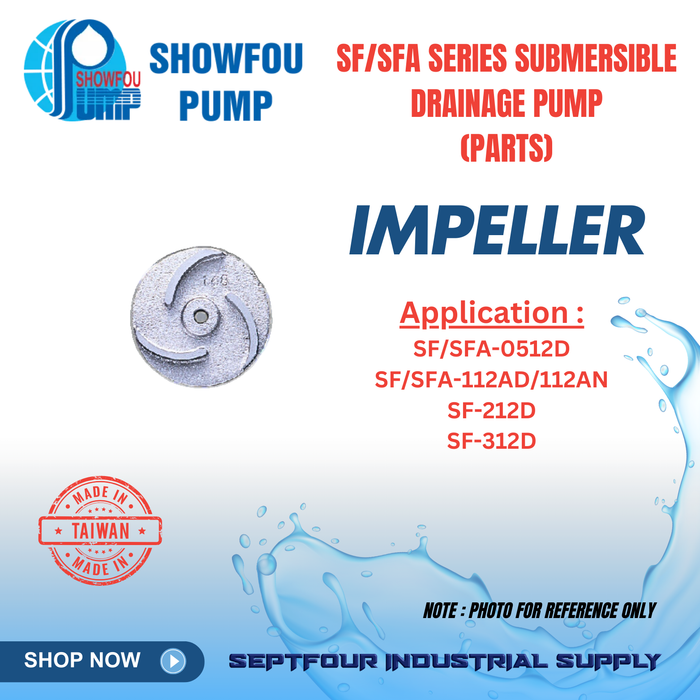

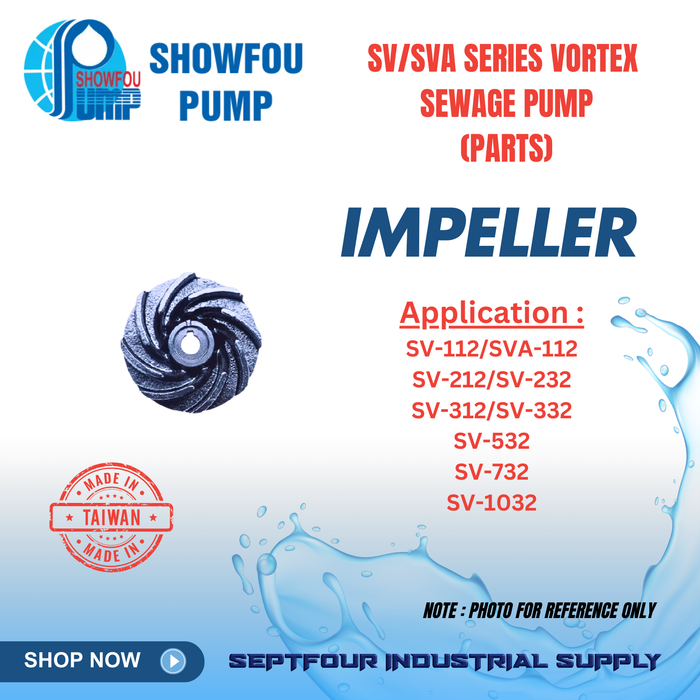

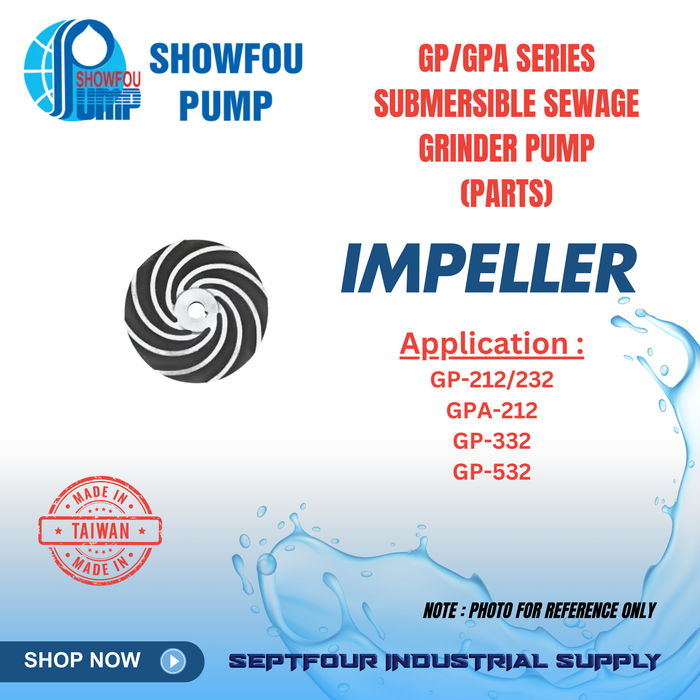

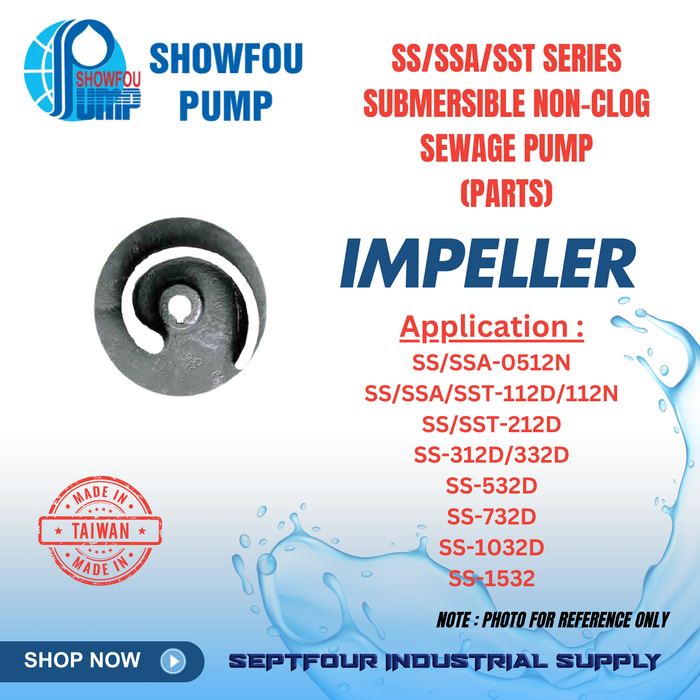

| Impeller |
|---|
| Impeller For SF-0512D |
| Impeller For SH-112D/112N |
| Impeller For SF-112AD/112AN |
| Impeller For SS/SST-112D/112N |
| Impeller For SH-212HD |
| Impeller For SS/SST-212D |
| Impeller For SF-212D |
| Impeller For SH-312HD/332HD |
| Impeller For SS-312D/332D |
| Impeller For SF-312D |
| Impeller For SH-532D |
| Impeller For SS-532D |
| Impeller For SS-732D |
| Impeller For SH-732D |
| Impeller For SS-1032D |
| Impeller For SH-1032D |
| Impeller For SF-0512N |
| Impeller For SH-1532 |
| Impeller For SS-1532 |
| Impeller For SS-0512N |
| Impeller For GF-100 |
| Impeller For GF-200 |
| Impeller For GF-370 |
| Impeller For GF-680 |
| Impeller For GV-200 |
| Impeller For GV-370 |
| Impeller For GV-680 |
| Impeller For SV/SVA-0512 |
| Impeller For SV-SVA-112 |
| Impeller For GP-212/232; GPA-212 |
| Impeller For SV-212/232 |
| Impeller For GP-332 |
| Impeller For SV-312/332 |
| Impeller For GP-532 |
| Impeller For SV-532 |
| Impeller. For SV-732 |
| Impeller SV-1032 |

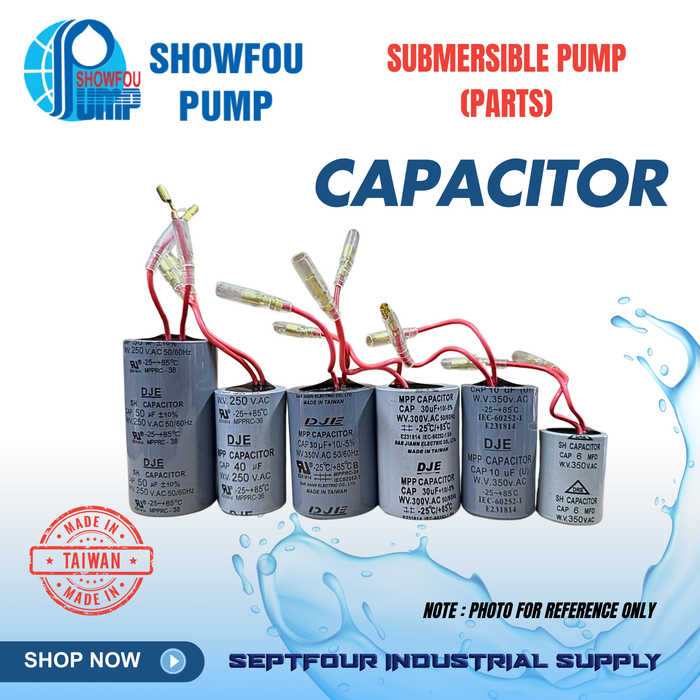

| Capacitor |
|---|
| Capacitor For GF-100 |
| Capacitor For SC-112A/SH-112D |
| Capacitor For KT-212N; SF/SS/SST-212D; SH-212HD |
| Capacitor For SF-112AD; SS/SST-112D |
| Capacitor For SF/SS/KS-312D; SH-312HD |
| Capacitor For SF/SS-0512N; SF-0512D; GF/GV-200/370/680; SSA-0512N; SV/SVA-0512 |
| Floating Switch |
|---|
| Floating switch For SFA/SSA/SHA |
| Floating switch For GFA/GVA/SFA/SSA/SHA |

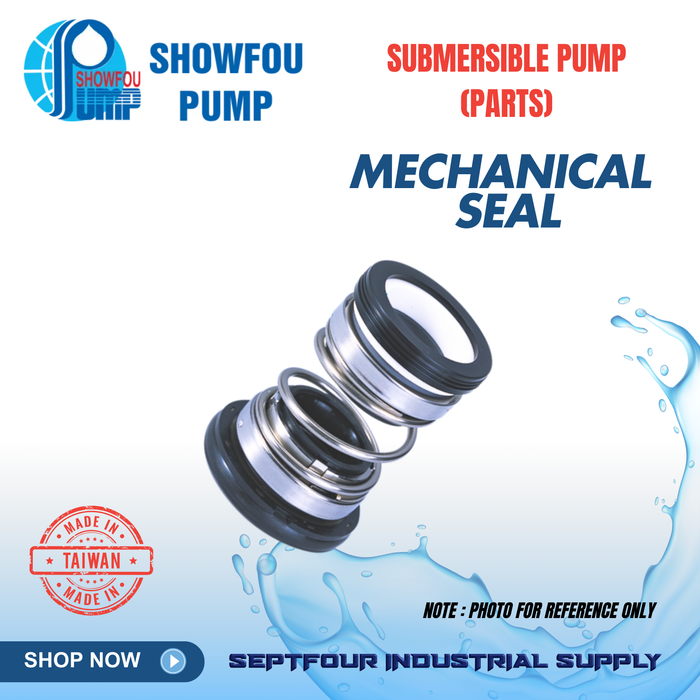

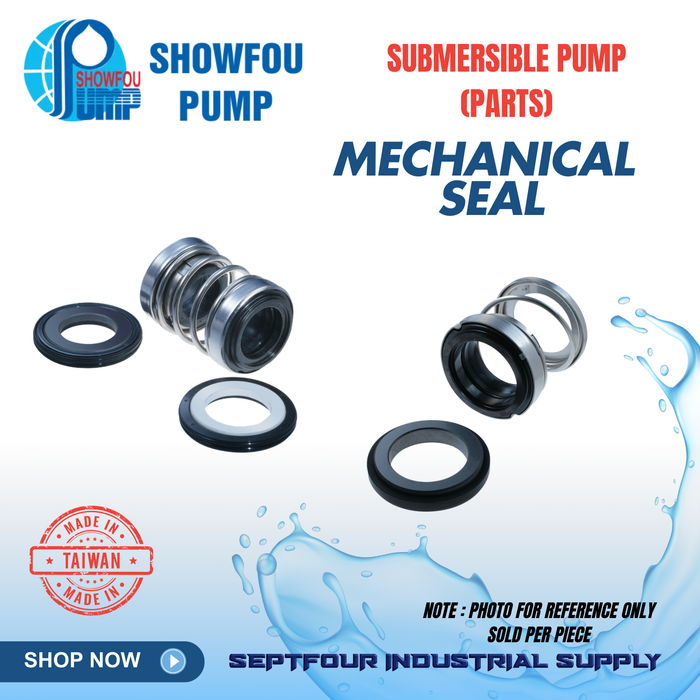

| Seal |
|---|
| M. Seal For SF-112AD; SS/SH-112D |
| M, Seal For SF/SS-212D/312D/332D |
| M. Seal for SH-212HD/312HD/332HD; KS-312D; GP-212/232; GPA-212 |
| M. Seal For SH/SS-532 |
| M. Seal For SS-732D/1032D |
| M. Seal For SH-732D/1032D |
| M. Seal For GF-100; GF/GV-200 |
| M. Seal For SS/SH-732/1032 |
| M. Seal For SH/SS-1532 |
| M. Seal For SF/SS-0512N. SGF/GV-370/680; SF-0512N |
| M. Seal For SSA-0512N |
| M. Seal For SV-212/232/312/332 |
| M. Seal For SV-732/1032 |
| M. Seal For SV-532 |
| M. Seal For SV/SVA-0512/112 |
