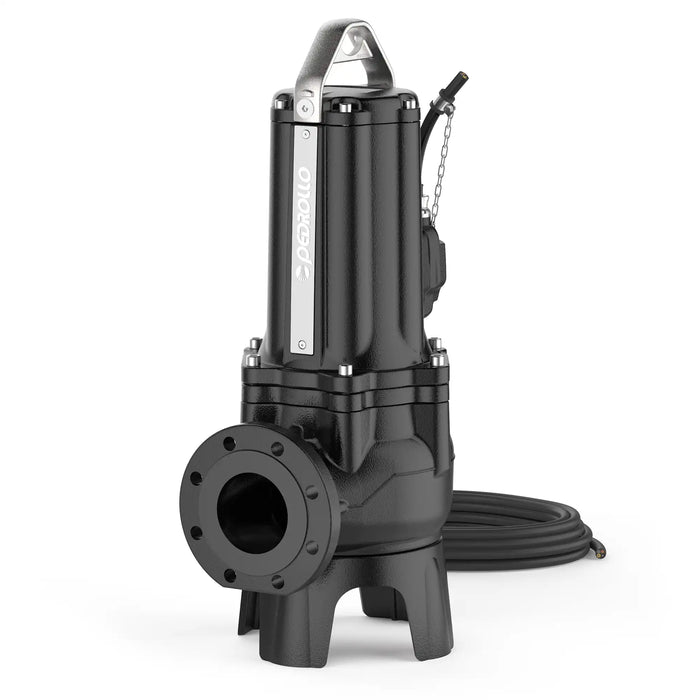

Pedrollo Submersible "Vortex" Sewage Pumps -VXC4 Medium Flow - Made In Italy
by Pedrollo
₱225,390.00
Pedrollo Submersible "Vortex" Sewage Pumps -VXC4 Medium Flow
The VXC4 series is constructed from thick stainless steel and cast iron, offering exceptional robustness, abrasion resistance, and durability. Equipped with a VORTEX-type impeller, the pumps are designed to drain sewage, sludgemixed water, and activated and putrid sludge. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.
Feature:
| Flow rate | up to 2200 l/min (132 m³/h) |
| Head up | up to 12.2 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | up to Ø 100 mm |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 550 mm |
| Motor | 4 poles |
| Ingress protection rating | IP 68 |
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor case | Cast iron |
| Shaft | Stainless steel AISI 431 |
Specification:
|
Model |
Power P2 |
Performance |
Ports |
Passage of solids |
||
|---|---|---|---|---|---|---|
|
Three Phase |
KW |
HP |
Q (L/min) |
H (m) |
DN1 |
Mm |
|
VXC4 40/100 |
3 |
4 |
300 - 1700 |
7.6 - 2 |
DN 100 (PN10) |
100 |
|
VXC4 50/100 |
3.7 |
5 |
300 - 2000 |
10.2 - 2.7 |
DN 100 (PN10) |
100 |
|
VXC 55/100 |
4 |
5.5 |
300 - 2200 |
11.7 - 3 |
DN 100 (PN10) |
100 |
