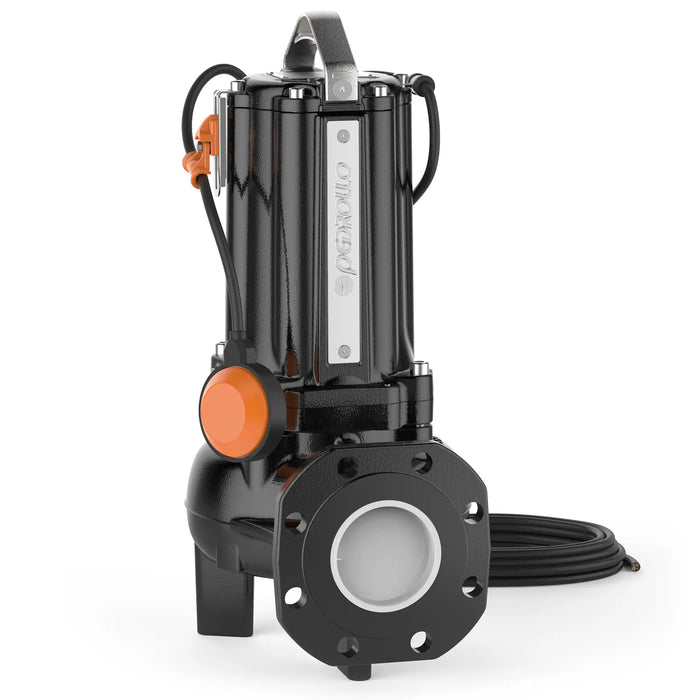

Pedrollo Submersible "Double Channel" Sewage Pumps - MC-F
The MC-F series is constructed from thick cast iron, offering exceptional robustness, abrasion resistance, and longevity. Featuring TWO-CHANNEL impellers, these pumps are designed to drain liquids containing suspended solids and short fibers, as well as wastewater, sewage, sludge-mixed water, groundwater, and surface water in various settings including apartment buildings, public facilities, industrial sites, parking facilities, and washing areas.
Feature:
| Flow rate | up to 1600 l/min (96 m³/h) |
| Head up | up to 25 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 50 mm for MC /50-F – up to Ø 65 mm for MC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | – 320 mm for MC /50-F – 360 mm for MC /65-F |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
| Pump housing | Cast iron |
| Impeller | Precision casted stainless steel AISI 304 |
| Motor case | Cast iron |
| Shaft | Stainless steel AISI 431 |
Standard Supply Single-phase Version
- External float switch
- Windings with built-in thermal overload protector
- Electrical panel equipped with:
- power switch;
- green light indicating when the elctric pump is powered
- amperometric protection with manual reset
- Capacitor
Standard Supply Three-phase Version
- Thermal motor protector incorporated in the winding, to be connected to the external control panel
Specification:
|
Model |
Power P2 |
Performance |
Ports |
Passage of Solid |
||
|---|---|---|---|---|---|---|
|
Single Phase |
KW |
HP |
Q (L/min) |
H (m) |
DN |
Mm |
|
MCm 15/50-F |
1.1 |
1.5 |
100 - 800 |
14 - 1 |
|
50 |
|
MCm 20/50-F |
1.5 |
2 |
100 - 900 |
16 - 1 |
DN65 2 1/2” |
50 |
|
MCm 30/50-F |
2.2 |
3 |
100 - 1100 |
22 - 2 |
DN65 2 1/2” |
50 |
|
MCm 30/65-F |
2.2 |
3 |
200 - 1500 |
12 - 2 |
DN80 3" |
65 |
|
Three-phase |
||||||
|
MC 15/50-F |
1.1 |
1.5 |
100 - 800 |
14 - 1 |
DN65 2 1/2” |
50 |
|
MC 20/50-F |
1.5 |
2 |
100 - 900 |
16 - 1 |
DN65 2 1/2” |
50 |
|
MC 30/50-F |
2.2 |
3 |
100 - 1100 |
22 - 2 |
DN65 2 1/2” |
50 |
|
MC 40/50-F |
3 |
4 |
100 - 1100 |
24 - 4 |
DN65 2 1/2” |
50 |
|
MC 30/65-F |
2.2 |
3 |
200 - 1500 |
12 - 2 |
DN80 3” |
65 |
|
MC 40/65-F |
3 |
4 |
200 - 1600 |
15 - 4 |
DN80 3” |
65 |
