Toku Rock Drill - Made In Japan
Feature
High Durability Long Life
- Alloy steel forged parts provide maximum durability.
- Removable bushing to protect wear of front head.
- Font head shock absorbers (except TH5-S)
Ergonomic Series Available
- Anti-vibration handle and noise reduction muffler are available for workers healthcare. (TJ series)
Other Features
- Forged latch retainer for quick chisel change.
- Multi position throttle for smooth start-up in drilling
Specification
| MODEL | Piston Diameter |
Piston Stroke |
Blow Per Min. |
Rotary Speed |
Net Weight |
Overall Length |
Air Consumption |
Hose Size |
||
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | b.p.m. | r.p.m. | kg | lb | mm | m3/min | cfm | mm | |

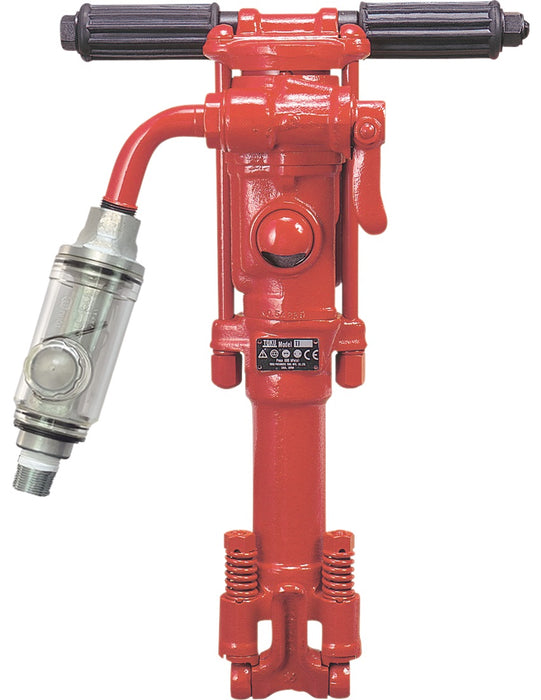

| TJ-15 | 54 | 45 | 2450 | 250 | 14.0 | 31 | 504 | 1.6 | 56.5 | 19 |

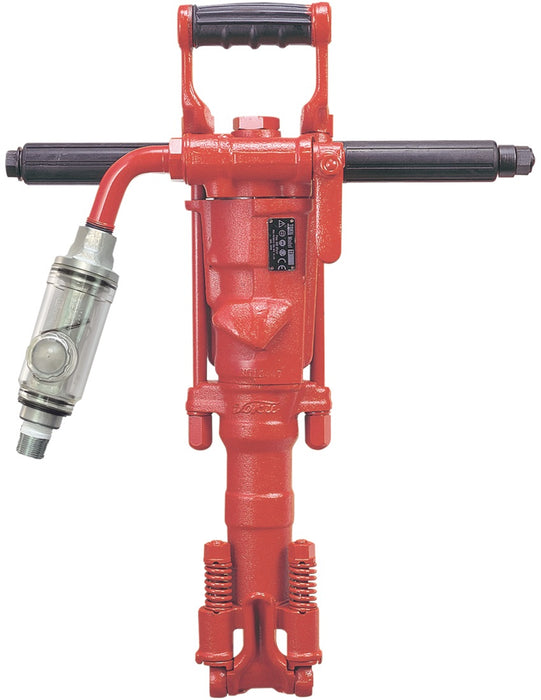

| TJ-20 | 68 | 49 | 2400 | 200 | 18.5 | 41 | 610 | 2.5 | 88.3 | 19 |
| TS-55 | 66.6 | 64 | 1800 | 200 | 27.0 | 60 | S-581 L-606 |
2.6 | 91.8 | 19 |

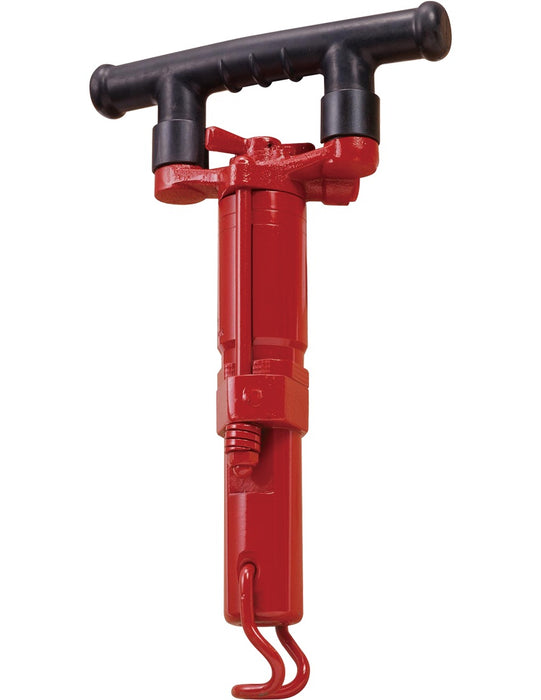

| TH5-S | - | - | 3400 | 420 | 5.8 | 13 | 425 | 0.9 | 30.0 | 12.7 |
Note :
Working pressure: 0.6MPa.
TH5-S shank size: R3/4 x 5/8H
