Toku Paving Breaker TPB Series -Made In Japan
Feature
Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete.
High Durability Long Life
- Alloy steel forged parts provide maximum durability.
- Original front head design for high durability.
- Removable bushing to protect wear of front head.
- Font head shock absorbers (except TPB-30, 40 and 40SV)
Ergonomic Series Available
- Anti-vibration handle is available for workers healthcare. (TPB-40SV and TPB-501SV)
- Optional muffler is available on request.
Functions
- Forged latch retainer for quick chisel change.
- 4 bolts handle type for low running cost
Specification
| MODEL | Piston Diameter |
Piston Stroke |
Blow Per Min. |
Net Weight |
Overall Length |
Air Consumption |
Hose Size |
Shank Size |
Air Inlet |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | b.p.m. | kg | lb | mm | m3/min | cfm | mm | inch | PT | |
| TPB-30 | 44.45 | 85 | 1550 | 15.0 | 33 | 564 | 1.4 | 49 | 12.7 | 7/8x3-1/4 or 1x4-1/4 | 1/2 |

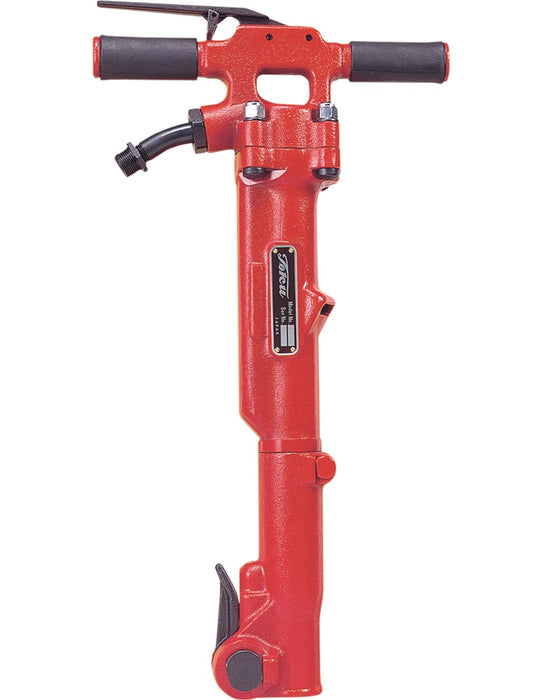

| TPB-40 | 44 | 146 | 1100 | 18.0 | 40 | 660 | 1.6 | 57 | 19 | 1x4-1/4 | 3/4 |
| TPB-60 | 57.15 | 100 | 1400 | 30 | 66 | 645 | 1.7 | 58 | 19 | 1-1/8x6 or 1-1/4x6 | 3/4 |

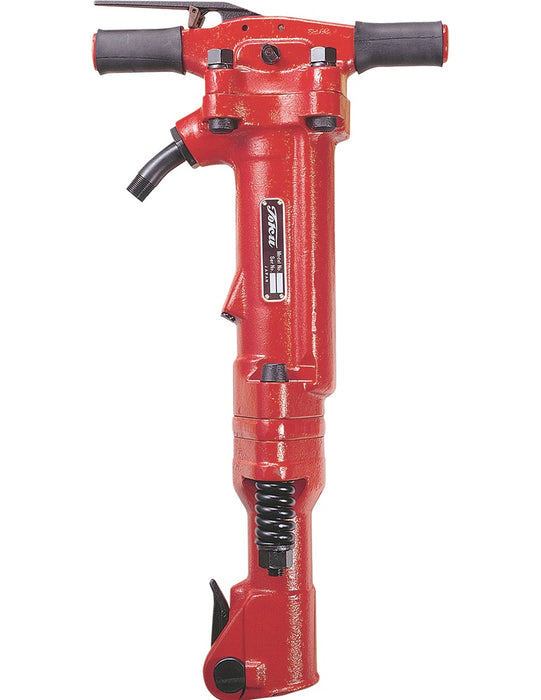

| TPB-90 | 66.6 | 152 | 1250 | 42 | 93 | 725 | 2.2 | 78 | 19 | 1-1/8x6 or 1-1/4x6 | 3/4 |
Note Working pressure: 0.6MPa.
