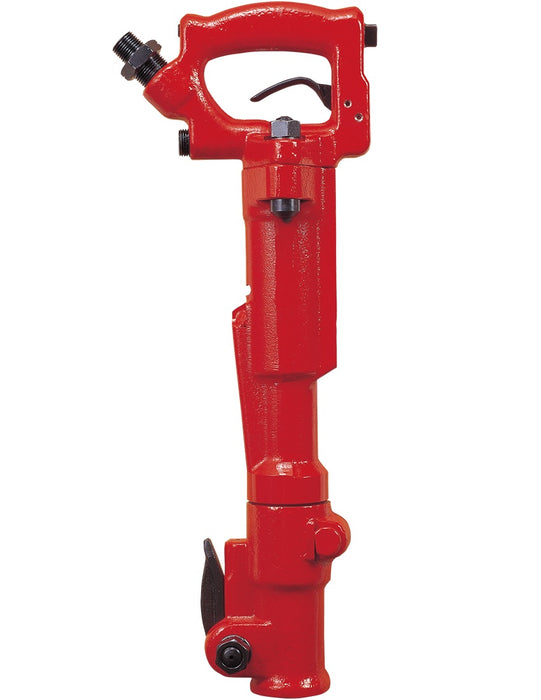

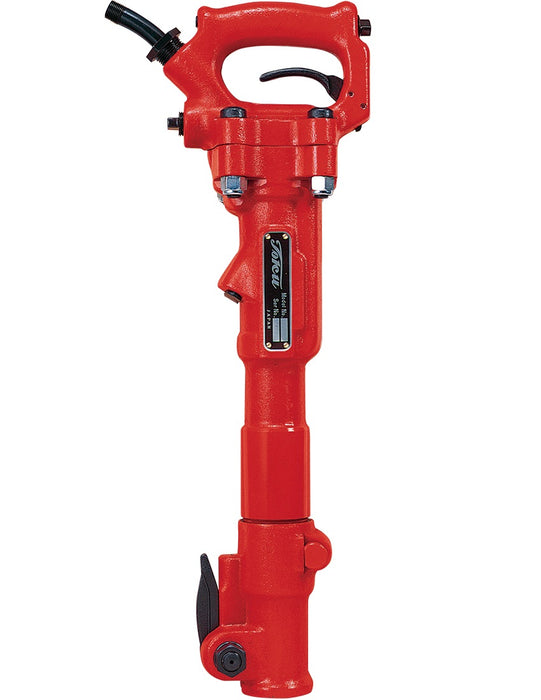

Toku Clay Digger TCD Series
Feature
High Durability Long Life
- Alloy steel forged parts provide maximum durability.
- Removable bushing to protect wear of front head.
Functions /Options
- Forged latch retainer for quick chisel change.
- TCD-30 & TRC-30 are interchangeable with TPB-30 by simply changing the handle.
- 2 bolt/4 bolt handle installation for easy maintenance
- Optional muffler is available on request.
Specification
| MODEL | Piston Diameter |
Piston Stroke |
Blow Per Min. |
Net Weight |
Overall Length |
Air Consumption |
Hose Size |
Shank Size |
Air Inlet |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | b.p.m. | kg | lb | mm | m3/min | cfm | mm | inch | PT | |
| TCD-20 | 42.85 | 60 | 2000 | 10 | 22 | 520 | 1.1 | 38.8 | 12.7 | 7/8x3-1/4 |
1/2 |
| TCD-30 | 44.45 | 85 | 1550 | 13.6 | 30 | 577 | 1.4 | 49.4 | 12.7 | 7/8x3-1/4 or 1x4-1/4 |
1/2 |
Note Working pressure: 0.6MPa.
